3 Years Warranty: All our products adapt UL listed New Material, we never adapt used material.
28 items Patent
Language

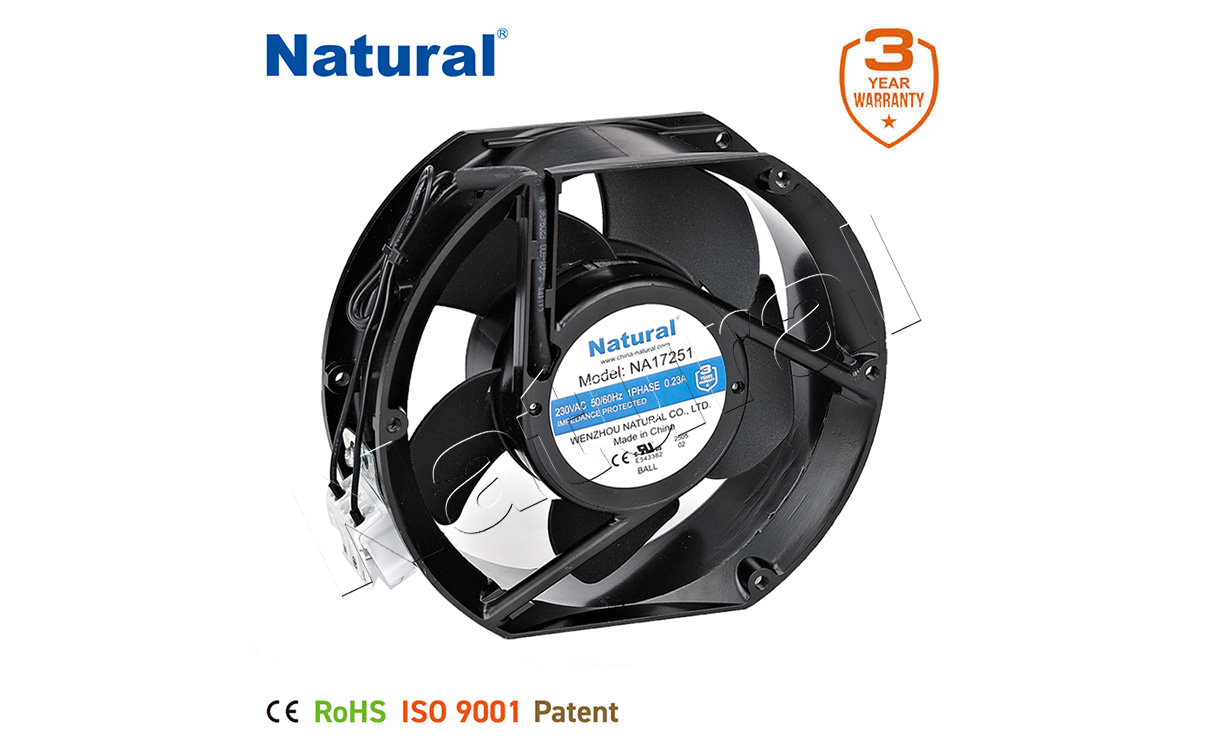

NA17251 230V UL&CUL
Features

General Specification


Size: 172×150×51mm


Airflow: 319~399m³/hr 188-235CFM


Weight: 870g


Noise: 52~62dBA


Impeller: PBT Black


Size: Frame: Aluminum Alloy


Airflow: Terminals: 0.5mm


Lead Wire: AWG#22


Motor: Shaded Pole Induction Motor


Operation Temperature: -10°C~+70°C

Technical Data

Model

Number

Bearing

Type

Voltage

(V)

Freq.

(Hz)

Current

(A)

Power

(W)

Speed

(RPM)

Noise

(dBA)

Air FlowPhaseCapacitor

M³/hr

CFM
17251-110BBall11050/600.5030.62730593361981/
17251-230BBall23050/600.2330.62730593361981/
17251-380BBall38050/600.1330.62730593361981/
17251-110SSleeve11050/600.5030.62730593361981/
17251-230SSleeve23050/600.2330.62730593361981/
17251-380SSleeve38050/600.1330.62730593361981/

"B" means Ball, "S" means Sleeve,

Current, Speed can be customer made

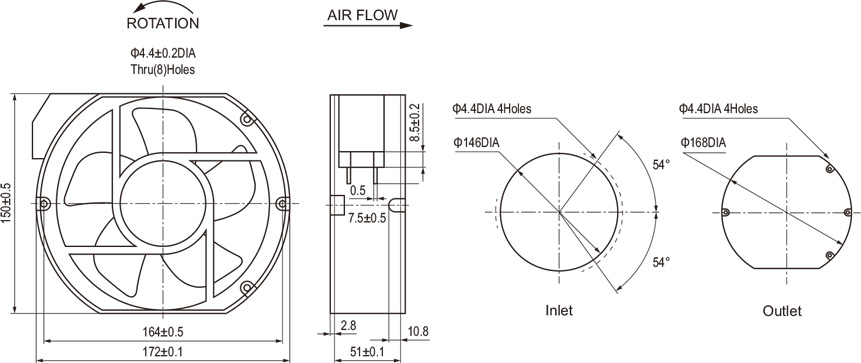

Structure Chart
