General Specification

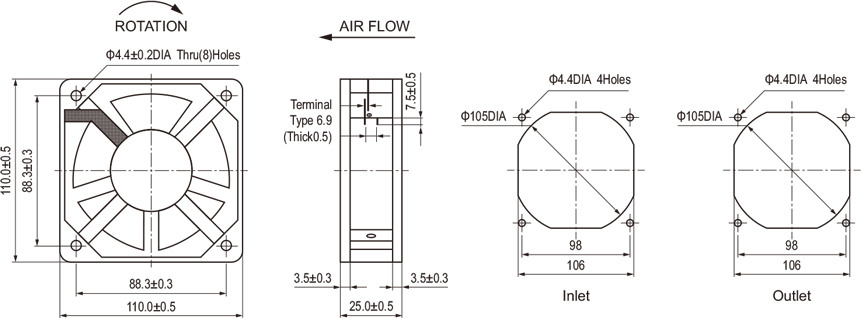

Size: 110×110×25mm
Airflow: 70~100m³/hr 41~59CFM
Weight: 304g
Noise: 30~41dBA
Impeller: PBT Black
Frame: Aluminum Alloy
Terminals: 0.5mm
Lead Wire: AWG#22
Motor: Shaded Pole Induction Motor
Operation Temperature: -10°C~+65°C
Model | Bearing | Voltage | Freq. | Current | Power | Speed | Noise | Air Flow | Phase | Capacitor | |
M³/hr | CFM | ||||||||||
11025-110B | Ball | 110 | 60 | 0.14 | 15 | 2230 | 47 | 100 | 59 | 1 | / |
11025-230B | Ball | 230 | 50 | 0.07 | 15 | 2230 | 47 | 100 | 59 | 1 | / |
11025-110S | Sleeve | 110 | 60 | 0.14 | 15 | 2230 | 47 | 100 | 59 | 1 | / |
11025-230S | Sleeve | 230 | 50 | 0.07 | 15 | 2230 | 47 | 100 | 59 | 1 | / |
"B" means Ball, "S" means Sleeve
Current, Speed can be customer made
