3 Years Warranty: All our products adapt UL listed New Material, we never adapt used material.

28 items Patent

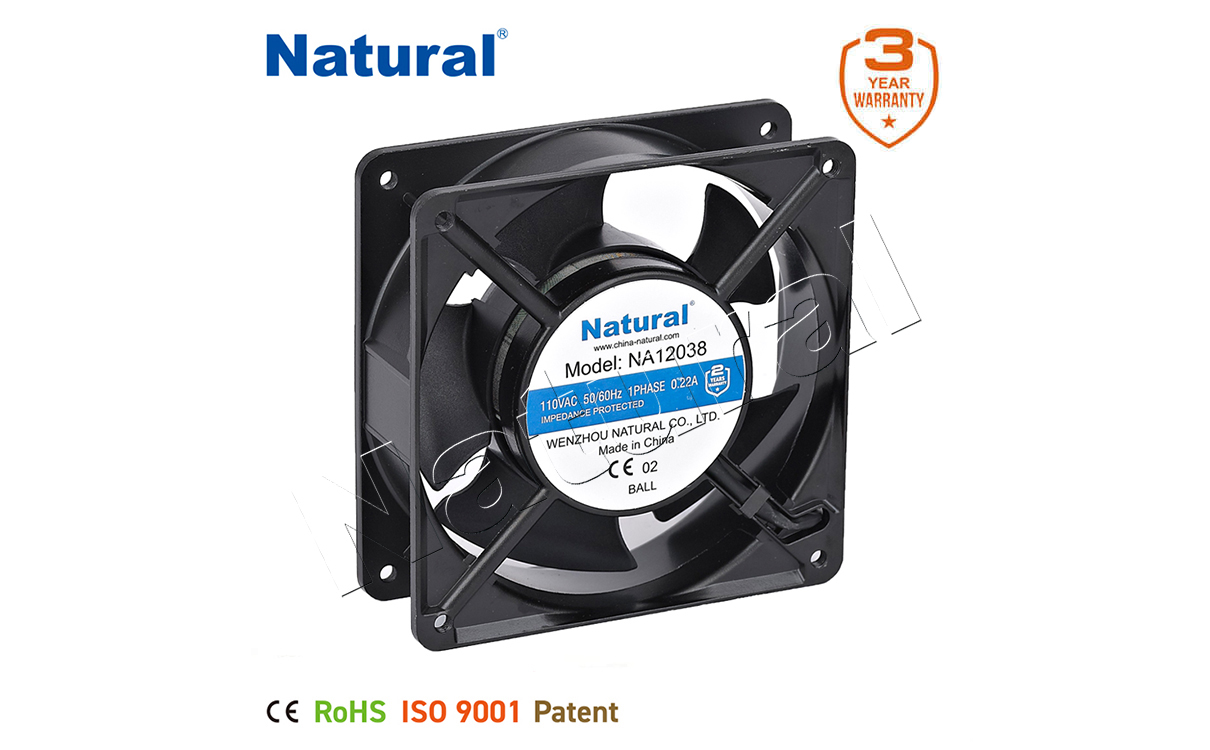

NA12038 110V UL&CUL

Features

Wechat:

15088970667
WhatsApp:

008615088970667

Email:dilys@china-natural.com

Technical Data
Structure Chart

Technical Data

Model Number	Bearing Type	Voltage (V)	Freq. (Hz)	Current (A)	Power (W)	Speed (RPM)	Noise (dBA)	Air Flow		Phase	Capacitor
Model Number	Bearing Type	Voltage (V)	Freq. (Hz)	Current (A)	Power (W)	Speed (RPM)	Noise (dBA)	M³/hr	CFM	Phase	Capacitor
12038-110B	Bal	110	50/60	0.22	21	2600	48	162	95	1	/
12038-230B	Bal	230	50/60	0.12	21	2600	48	162	95	1	/
12038-380B	Bal	380	50/60	0.07	21	2600	44	162	95	1	/
12038-110S	Sleeve	110	50/60	0.22	21	2600	48	162	95	1	/
12038-230S	Sleeve	230	50/60	0.12	21	2600	48	162	95	1	/
12038-380S	Sleeve	380	50/60	0.07	21	2600	44	162	95	1	/

"B" means Ball, "S" means Sleeve,

Current, Speed can be customer made

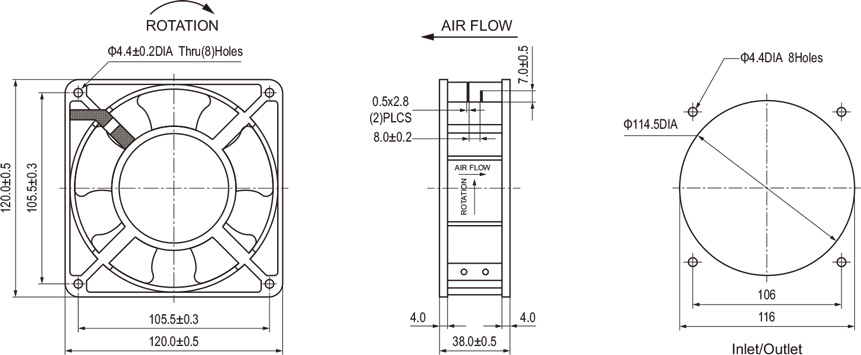

Structure Chart
