General Specification

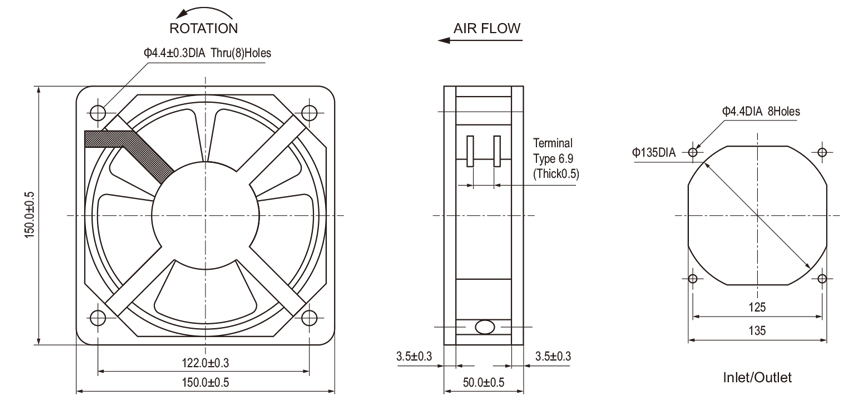

Size: 150×150×50mm
Airflow: 272~336m³/hr 160-198CFM
Weight: 860g
Noise: 49~59dBA
Impeller: PBT Black
Frame: Aluminum Alloy
Terminals: 0.5mm
Lead Wire: AWG#22
Motor: Shaded Pole Induction Motor
Operation Temperature: -10°C~+65°C
Model | Bearing | Voltage | Freq. | Current | Power | Speed | Noise | Air Flow | Phase | Capacitor | |
M³/hr | CFM | ||||||||||
15050-110B | Ball | 110 | 60 | 0.5 | 28 | 2650 | 59 | 336 | 198 | 1 | / |
15050-230B | Ball | 230 | 50 | 0.23 | 26 | 2650 | 59 | 336 | 198 | 1 | / |
15050-380B | Ball | 380 | 50 | 0.13 | 26 | 2650 | 59 | 336 | 198 | 1 | / |
15050-110S | Sleeve | 110 | 60 | 0.5 | 28 | 2650 | 59 | 336 | 198 | 1 | / |
15050-230S | Sleeve | 230 | 50 | 0.23 | 26 | 2650 | 59 | 336 | 198 | 1 | / |
15050-380S | Sleeve | 380 | 50 | 0.13 | 26 | 2650 | 59 | 336 | 198 | 1 | / |
"B" means Ball, "S" means Sleeve, "H" means High Speed, "M" means Middle Speed,
Current, Speed can be customer made
