General Specification

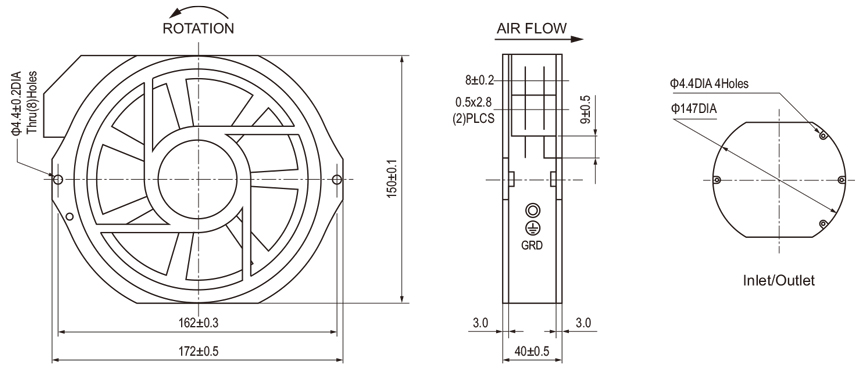

Size: 170×150×40mm
Airflow: 330~375m³/hr 194-220CFM
Weight: 655g
Noise: 56~60dBA
Impeller: PBT Thermoplastic Black, UL94-V0
Frame: Aluminum Alloy
Terminals: 0.5mm
Lead Wire: AWG#22 UL 1007(Optional)
Motor: Capacitor-Run Induction Motor
Operation Temperature: -10°C~+70°C
Model | Bearing | Voltage | Freq. | Current | Power | Speed | Noise | Air Flow | Phase | Capacitor | |
M3/hr | CFM | ||||||||||
17040-110BH-C | Ball | 100~125 | 50/60 | 0.35/0.40 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 1 | 3.3μf/250V |
17040-230BH-C | Ball | 200~240 | 50/60 | 0.20/0.22 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 1 | 1.0μf/450V |
17040-380BH | Ball | 380~420 | 50/60 | 0.08 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 3 | / |
17040-380BH-C | Ball | 380~420 | 50/60 | 0.10 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 1 | 0.47μf/450V |
17040-110SH-C | Ball | 100~125 | 50/60 | 0.35/0.40 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 1 | 3.3μf/250V |
17040-230SH-C | Ball | 200~240 | 50/60 | 0.20/0.22 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 1 | 1.0μf/450V |
17040-380SH | Ball | 380~420 | 50/60 | 0.08 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 3 | / |
17040-380SH-C | Ball | 380~420 | 50/60 | 0.10 | 30 | 2500/2900 | 56/60 | 330/375 | 194/220 | 1 | 0.47μf/450V |
"B" means Ball, "S" means Sleeve, "H" means High Speed, "M" means Middle Speed,
Current, Speed can be customer made
