NA21070
Features

General Specification


Size: 205×205×72mm


Airflow: 905~1248m³/hr 533-735CFM


Weight: 2100g


Noise: 61~68dBA


Impeller: PBT Black


Frame: Aluminum Alloy


Terminals: 0.5mm


Lead Wire: AWG#24


Motor: Capacitor-Run Induction Motor


Operation Temperature: -10°C~+65°C

Email:dilys@china-natural.com
Send Inquiry
Technical Data

Model
Number

Bearing
Type

Voltage
(V)

Freq.
(Hz)

Current
(A)

Power
(W)

Speed
(RPM)

Noise
(dBA)

Air Flow

Phase

Capacitor

M3/hr

CFM

21070-110B

Ball

110

60

0.8

88

2850

68

1092

643

1

/

21070-230B

Ball

230

50

0.35

68

2850

68

1092

643

1

/

"B" means Ball

Current, Speed can be customer made

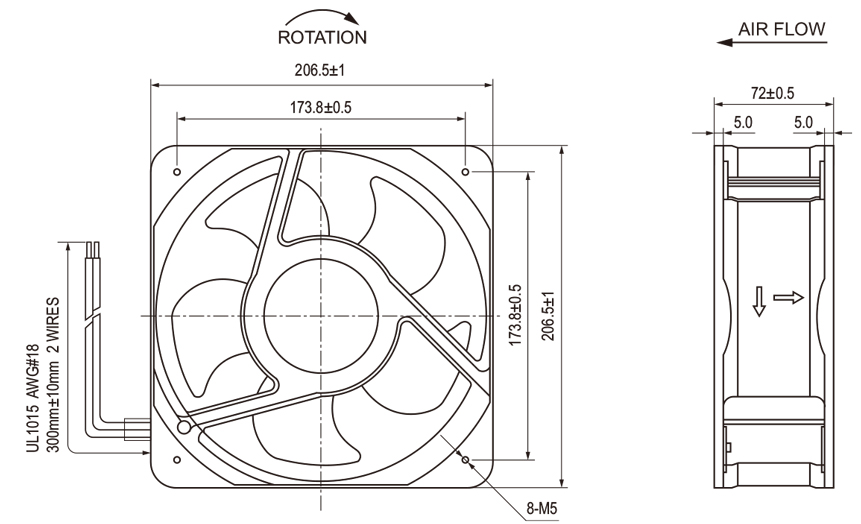

Structure Chart
