Pressure clamp connectors
Dynamic heating up
Wide voltage range
Energy saving
With fast fixing part, easy to fix onto DIN rail and easy to remove from DIN rail

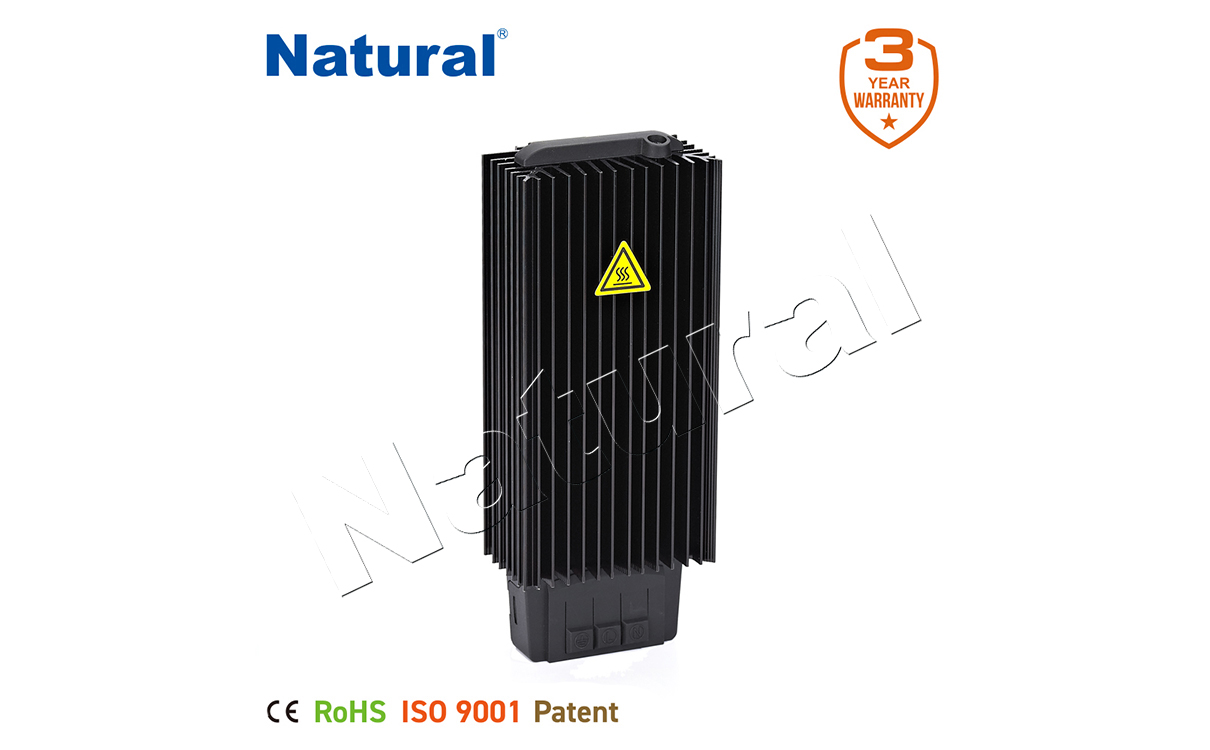

NTL 201S | |
Operating voltage | 120-260V AC/DC or 12V DC or 24V DC or 48V DC¹ (min. 110V, max. 265V) |
Heating element | PTC resistor - temperature limiting |
Heater body | extruded aluminium profile, anodised |
Connection | 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5-2.5mm² |
Connection casing | plastic according to UL94 V-0, black |
Mounting | clip for 35mm DIN rail, EN 60715 |
Fitting position | vertical airflow (air outlet up, connection on bottom) |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / I (earthed) |
Accessoires | screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces) |
Note | other voltages on request |
Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

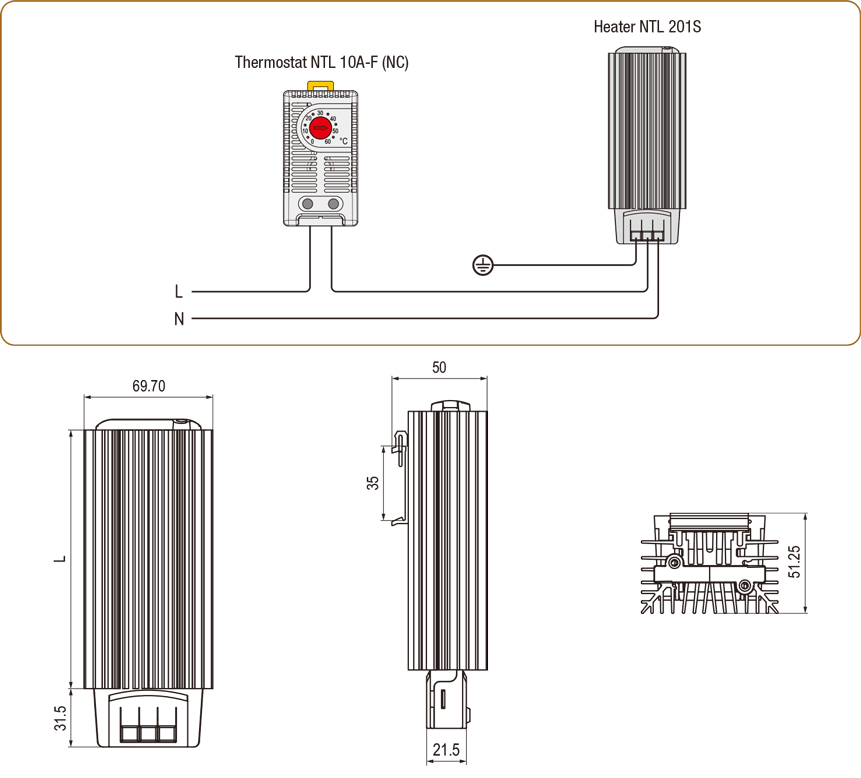

Art. No. | Heating capacity | Length (L) | Weight (approx.) |
201S015 | 15W | 65mm | 0.277kg |
201S030 | 30W | 65mm | 0.277kg |
201S045 | 45W | 65mm | 0.277kg |
201S060 | 60W | 88mm | 0.350kg |
201S075 | 75W | 88mm | 0.350kg |
201S100 | 100W | 88mm | 0.350kg |
201S150 | 150W | 100mm | 0.386kg |
201S200 | 200W | 150mm | 0.530kg |
at +20°C (+68°F) ambient temperature
