Pressure clamp connectors
Dynamic heating up
Wide voltage range
Energy saving
Screw fixing, Quick installation
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.

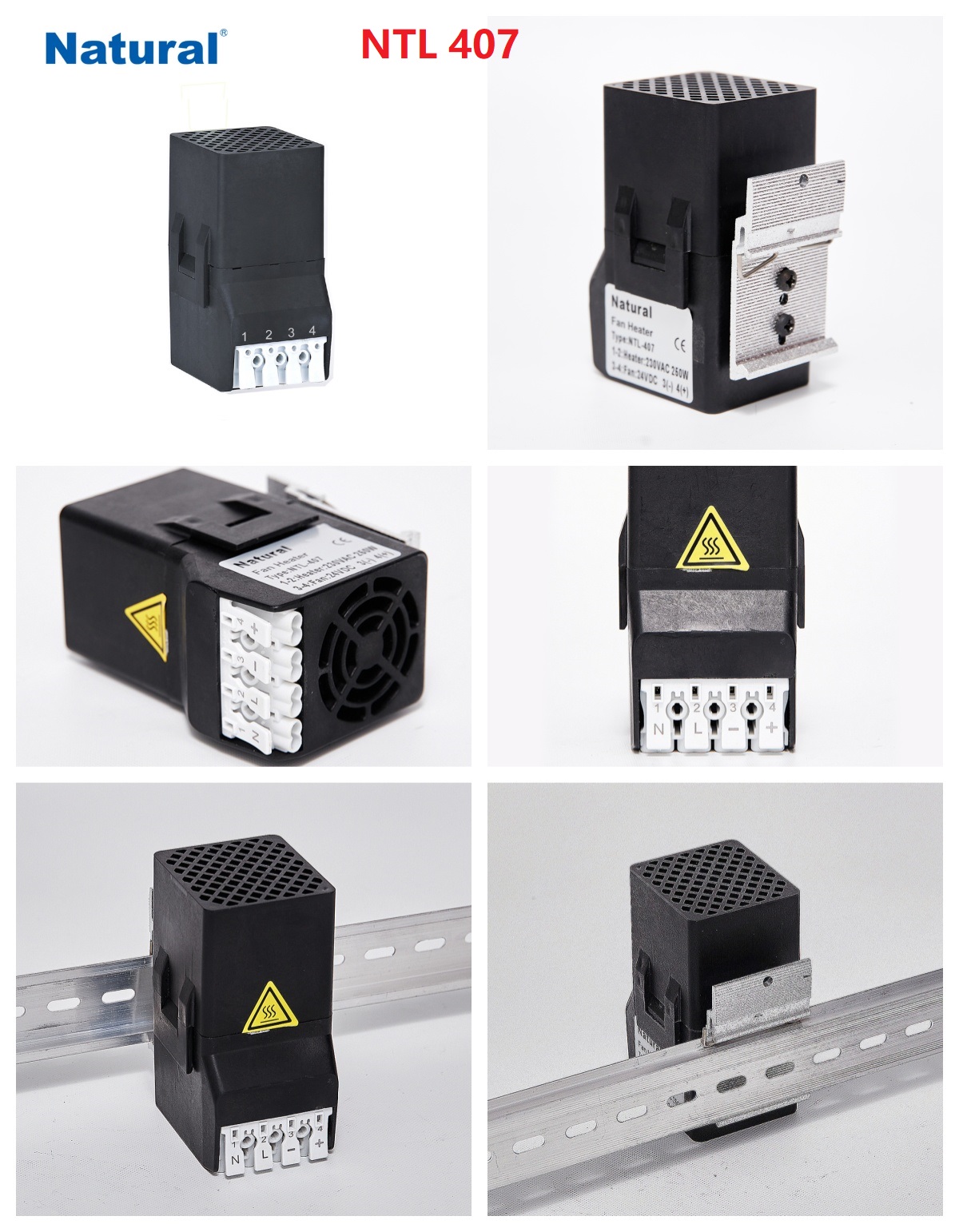

NTL 407 COMPACT SEMICONDUCTOR FAN HEATER | |
Operating voltage | 230VAC or 120VAC |
Heating element | PTC resistor - temperature limiting |
Surface temperature | 150W/250W: max. +50°C (+122°F), 350W: max. +65°C (+149°F) each except upper protective grille at +20°C (+68°F) ambient temperature |
Axial fan, ball bearing | air flow, free flow 45m³/h (230VAC), 54m³/h (120VAC) service life 40,000h at +40°C (+104°F) |

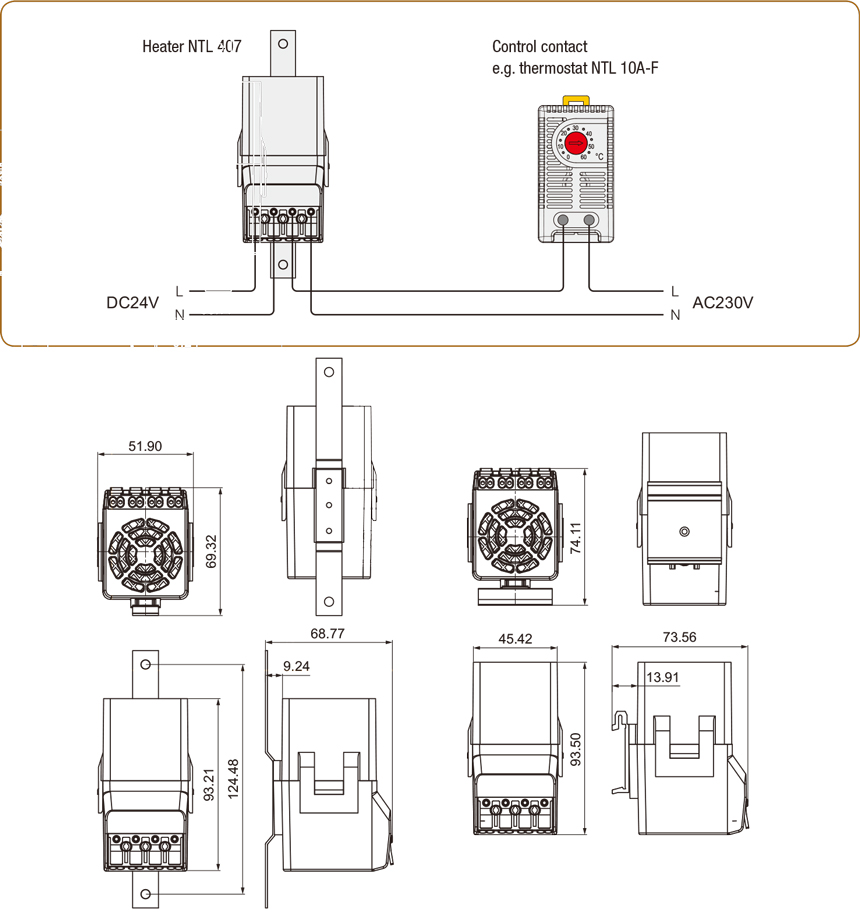

Connection | 2-pole clamp max. 2.5mm², clamping screw torque 0.8Nm max. |
Casing | plastic according to UL94 V-0, black |
Mounting | clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm) |
Fitting position | vertical airflow (air outlet up) |
Operating/Storage temperature | -40 to +70°C (-40 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (earthed) |
Note | other voltages on request |
Art. No. | Heating capacity² | Operating voltage | Dimensions | Weight (approx.) |
860371 | 150W | 230VAC, 50/60Hz | 94 x 70 x 52mm | 0.3kg |
860372 | 250W | 230VAC, 50/60Hz | 94 x 70 x 52mm | 0.3kg |
860373 | 300W | 230VAC, 50/60Hz | 94 x 70 x 52mm | 0.3kg |
860374 | 400W | 230VAC, 50/60Hz | 94 x 70 x 52mm | 0.3kg |
¹ at +20°C (+68°F) ambient temperature
