28 items Patent
With on/off switch
High heating performance
Double insulated
Integrated thermostat
Optional clip or screw fixing

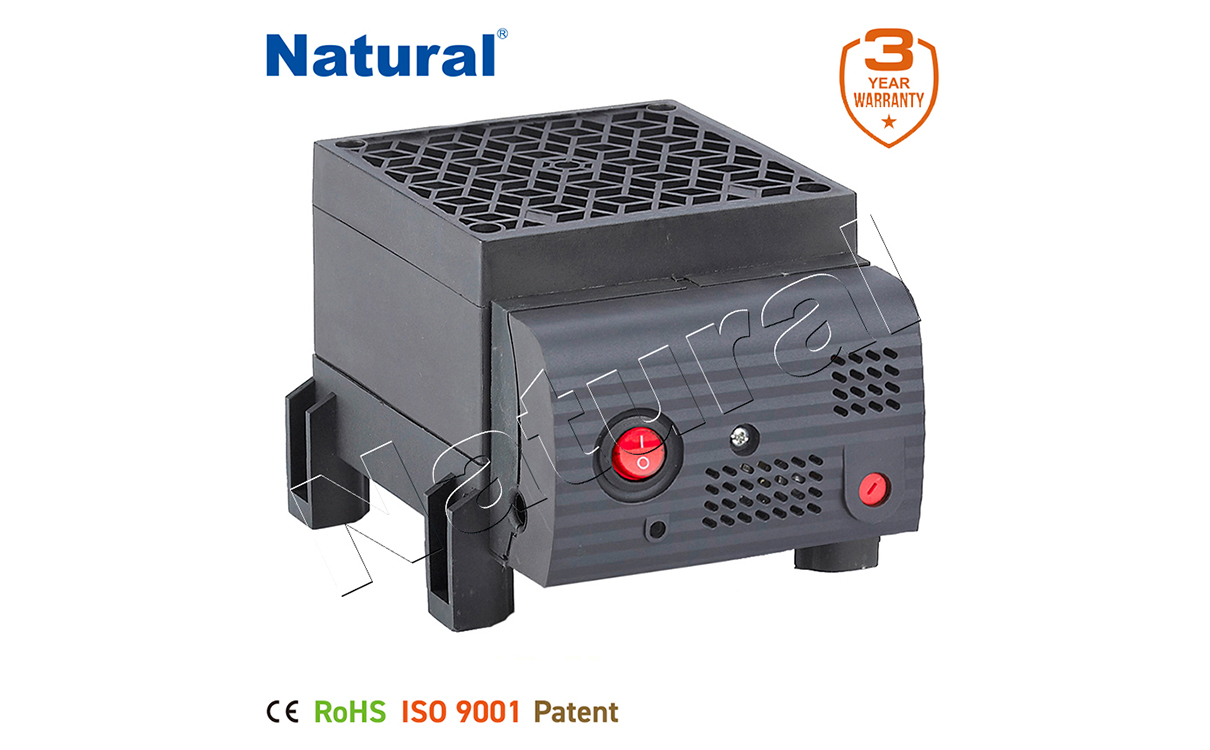

The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic housing provides double insulation and acts as protection against contact. The fan heater is available with integrated thermostat for temperature control. The CS 130 was designed as a stationary unit for wall fixing. For fixing on the bottom of the enclosure the fan heater CS 030 is recommended.
NTL 1200-S | |
Operating voltage | 230VAC or 120VAC |
Heating element | PTC resistor - temperature limiting |
Temperature safety cut-out | to protect against overheating in case of fan failure, automatic reset |
Axial fan, ball bearing | airflow 160m³/h, free flow. service life 50,000h at +25°C (+77°F) |
Connection | 2-pole max. 2.5mm², clamping screw with strain relief, torque 0.8Nm max. |
Casing | plastic according to UL94 V-0, black |
Mounting | screw fixing (M6) |
Fitting position | vertical airflow (air outlet up) – other fitting positions possible |
With Thermostat | With thermostat to control temperature |
With on/off switch | Can manual power on and off |
Dimensions | 182 x 160 x 120mm |
Weight | approx. 1.3kg |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated) |
Art. No. | Model | Operating voltage | Heating capacity¹ | Setting range² |
860375-S | Fan Heater with thermostat | 230VAC, 50/60Hz | 800W | 0 to +60°C |
860376-S | Fan Heater with thermostat | 230VAC, 50/60Hz | 900W | 0 to +60°C |
860377-S | Fan Heater with thermostat | 230VAC, 50/60Hz | 1000W | 0 to +60°C |
860378-S | Fan Heater with thermostat | 230VAC, 50/60Hz | 1200W | 0 to +60°C |
860379-S | Fan Heater with thermostat | 120VAC, 50/60Hz | 800W | +32 to +140°F |
860380-S | Fan Heater with thermostat | 120VAC, 50/60Hz | 900W | +32 to +140°F |
860381-S | Fan Heater with thermostat | 120VAC, 50/60Hz | 1000W | +32 to +140°F |
860382-S | Fan Heater with thermostat | 120VAC, 50/60Hz | 1200W | +32 to +140°F |
¹ at +20°C (+68°F) ambient temperature; ² Switch temperature difference 7K (±4K tolerance)
