Pressure clamp connectors
Dynamic heating up
Wide voltage range
Energy saving
Clip fixing
Quick installation
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.

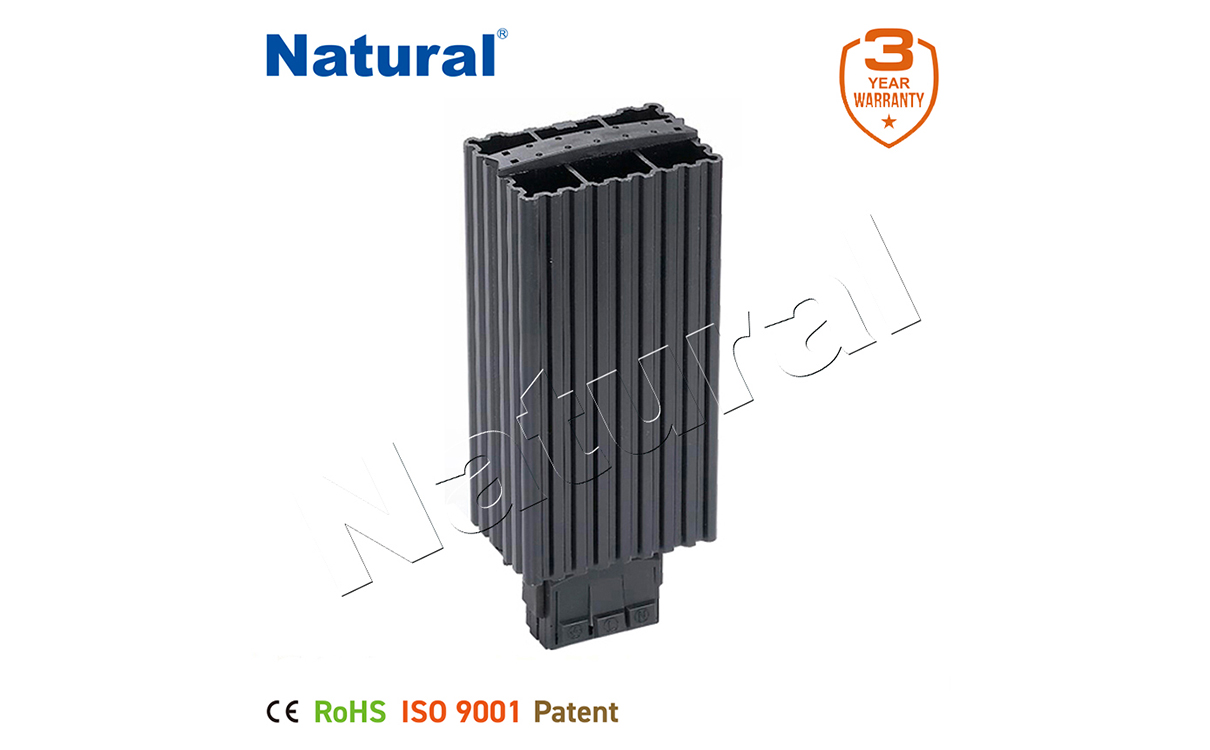

HG 140 SEMICONDUCTOR HEATER | |
Operating voltage | 120-240V AC/DC¹ (min. 110V, max. 265V) |
Heating element | PTC resistor - temperature limiting |
Heater body | extruded aluminium profile, anodised |

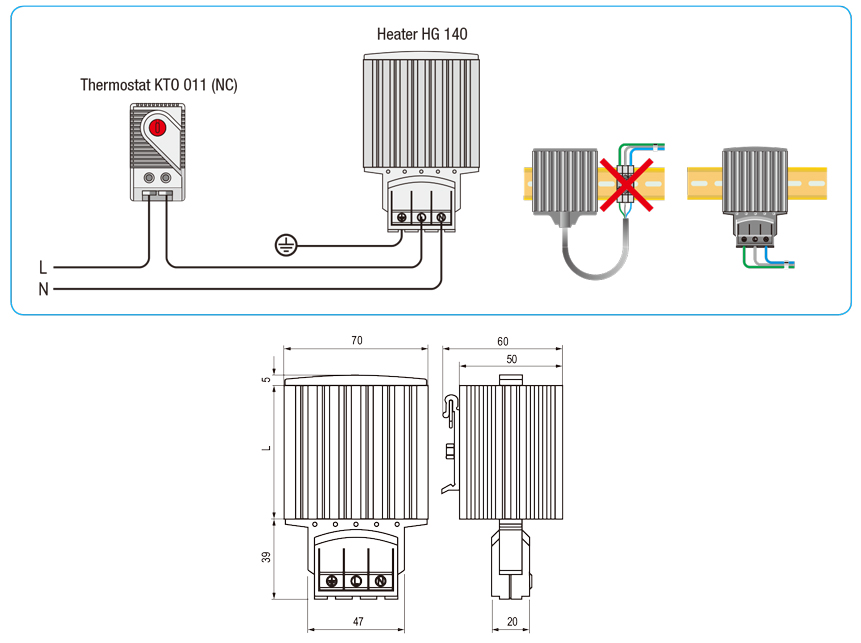

Connection | 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm² |
Connection casing | plastic according to UL94 V-0, black |
Mounting | clip for 35mm DIN rail, EN 60715 |
Fitting position | vertical airflow (air outlet up, connection on bottom) |
Operating/Storage temperature | -45 to +70℃ (-49 to +158℉) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / I (earthed) |
Accessoires | screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces) |
Note | other voltages on request |
Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
Art. No. | Heating capacity² | Length (L) | Weight (approx.) |
14000.0-00 | 15W | 65mm | 0.3kg |
14001.0-00 | 30W | 65mm | 0.3kg |
14003.0-00 | 45W | 65mm | 0.3kg |
14004.0-00 | 50W | 65mm | 0.3kg |
140010.0-00 | 55W | 65mm | 0.3kg |
14005.0-00 | 60W | 140mm | 0.4kg |
14006.0-00 | 75W | 140mm | 0.5kg |
14007.0-00 | 100W | 140mm | 0.5kg |
14008.0-00 | 150W | 220mm | 0.7kg |
14009.0-00 | 200W | 220mm | 0.7kg |
