28 items Patent
For use in hazardous areas
Large convection surface
DIN rail and screw mounting
Ready-to-use with strain relief
Maintenance free
Compact convection heater is for use in hazardous areas for prevention of formation of condensation, temperaturefluctuations, and for protection against frost in control and switch cabinets, as well as in measuring equipment.
Provide Semiconductor Enclosure Heater , picture, parameter details, more product details welcome to call to ask Semiconductor Enclosure Heater manufacturers.
CREx 020 | |
Heating element | high performance cartridge |
Heater body | aluminium profile, silver anodised |
Connection | Si HF-JZ 3 x 0.5mm² cable, length 1m |
Connection PE | 4mm² |
Mounting | screw fixing |
Fitting position | vertical airflow (connection on bottom) |
Storage temperature | -45 to +70℃ (-49 to +158℉) |
Operating/Storage humidity | max.90% RH(non-condensing) |
Protection type/Protection class | IP65/I(earthed) |
Ambient temperature | -76 to +122°F (-60 to +50°C) |

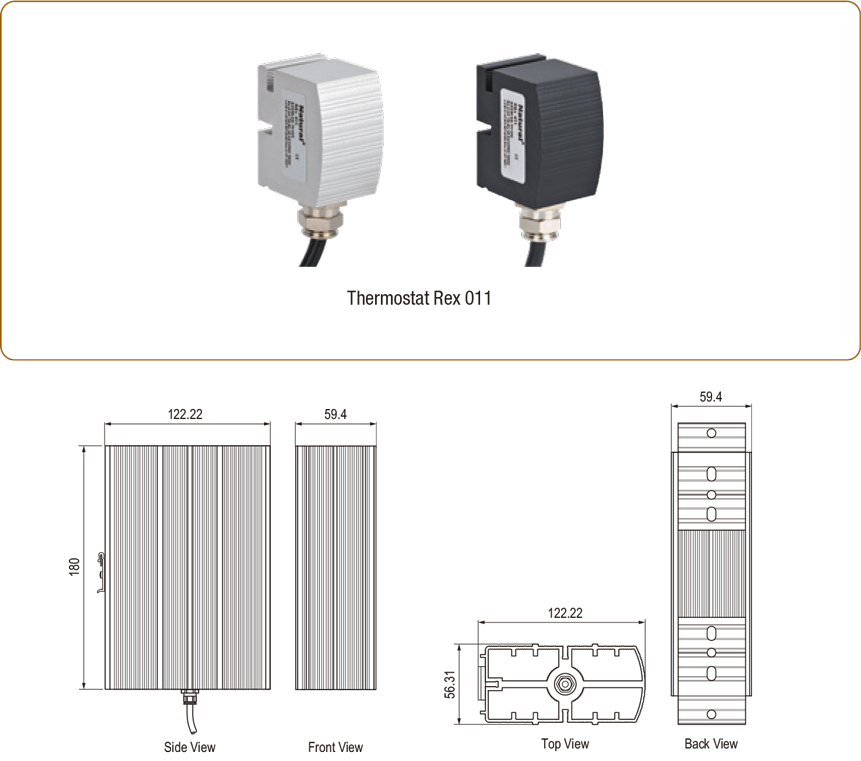

Art No.(230V) | Heating capacity | Operating voltage | Length (L) | Weight(approx.) |
020M01 | 50W | 230-240VAC | 180mm | 1.04kg |
020M02 | 100W | 230-240VAC | 180mm | 1.05kg |
020M03 | 150W | 230-240VAC | 180mm | 1.06kg |
020M04 | 50W | 110-120VAC | 180mm | 1.04kg |
020M05 | 100W | 110-120VAC | 180mm | 1.05kg |
020M06 | 150W | 110-120VAC | 180mm | 1.06kg |
