Small, compact design
Quiet in operation
Dynamic heating up
Clip or screw fixing
With LED display light(when heating, the light will be on, when stop heating,the light will be off

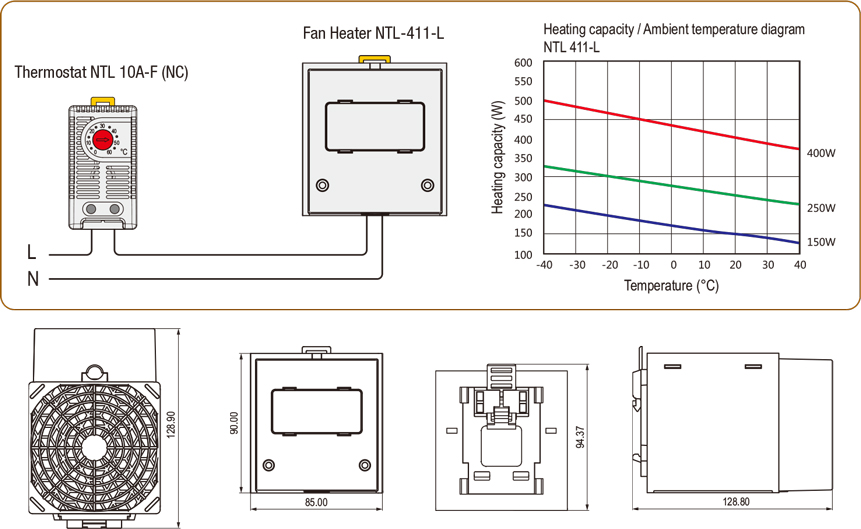

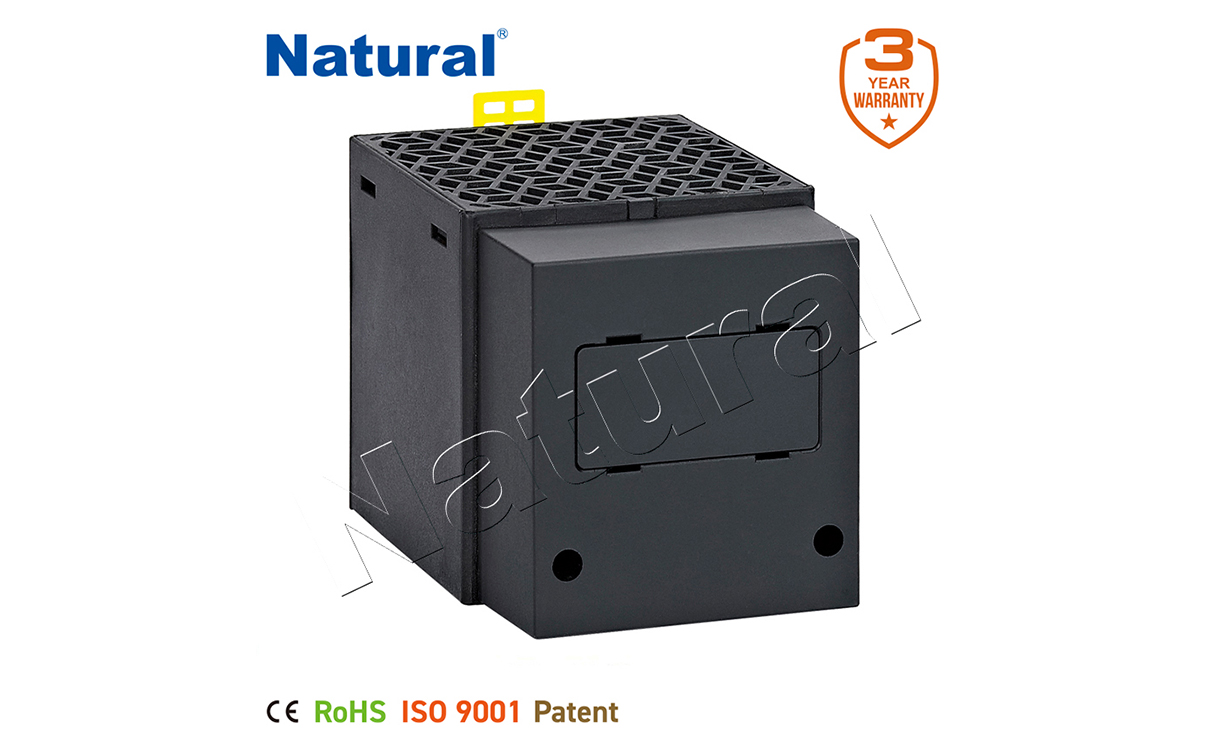

Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater is connected using the internal terminal connectors. The small size of the NTL 411-L makes it ideal for use in enclosures where space is at a premium.
NTL 403 | |
Operating voltage | 230VAC or 120VAC |
Heating element | PTC resistor - temperature limiting |
Surface temperature | 150W/250W: max. +50°C (+122°F), 400W: max. +65°C (+149°F) each except upper protective grille at +20°C (+68°F) ambient temperature |
Axial fan, ball bearing | air flow, free flow 45m³/h (230VAC), 54m³/h (120VAC) service life 40,000h at +40°C (+104°F) |
Connection | 2-pole clamp max. 2.5mm², clamping screw torque 0.8Nm max. |
Casing | plastic according to UL94 V-0, black |
Mounting | clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm) |
Fitting position | vertical airflow (air outlet up) |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / II (double insulated) |
Note | other voltages on request |
Art. No. | Heating capacity¹ | Operating voltage | Dimensions | Weight (approx.) |
41115.0-L | 150W | 230VAC, 50/60Hz | 75×65×90mm | 0.3kg |
41125.0-L | 250W | 230VAC, 50/60Hz | 90×85×111mm | 0.5kg |
41140.0-L | 400W | 230VAC, 50/60Hz | 90×85×111mm | 0.5kg |
41115.9-L | 150W | 120VAC, 50/60Hz | 75×65×90mm | 0.3kg |
41125.9-L | 250W | 120VAC, 50/60Hz | 90×85×111mm | 0.5kg |
41140.9-L | 400W | 120VAC, 50/60Hz | 90×85×111mm | 0.5kg |
¹ at +20°C (+68°F) ambient temperature
