Pressure clamp connectors
Dynamic heating up
Wide voltage range
Energy saving
Clip fixing
Quick installation
The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured. The heaters are designed for permanent operation.

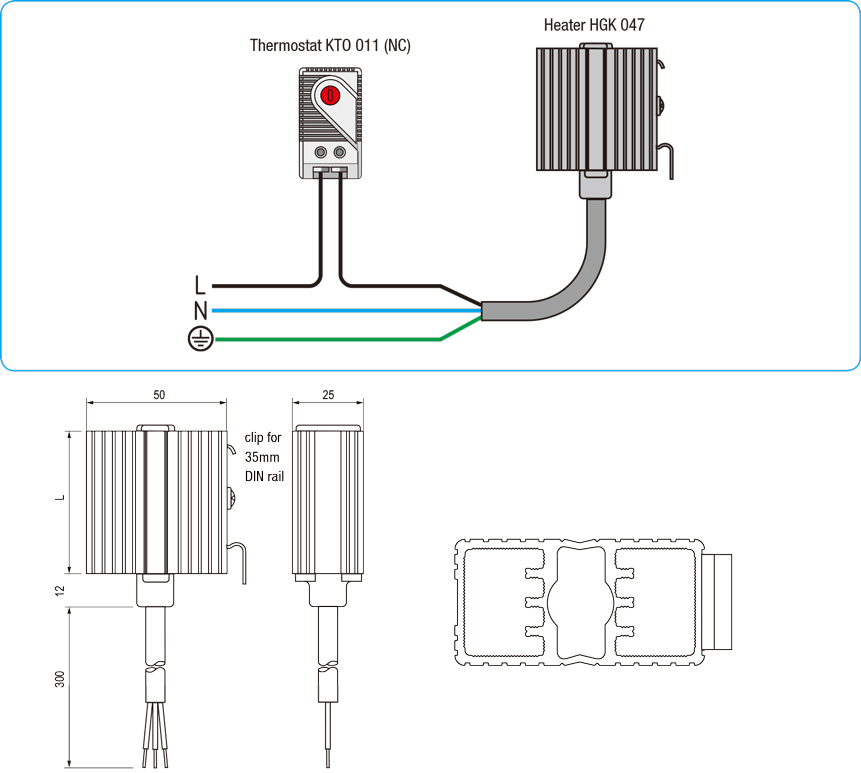

HGK 047 SEMICONDUCTOR HEATER | |
Heating element | PTC resistor - temperature limiting |
Heater body | extruded aluminium profile, anodised |
Mounting | clip for 35mm DIN rail, EN 60715 |
Fitting position | vertical airflow (air outlet up, connection on bottom) |
Operating/Storage temperature | -45 to +70℃ (-49 to +158℉) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP44 / I (earthed) |
Accessoires | screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces) |
Note | other voltages on request |
Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
Art. No. | Operating voltage | Heating capacity¹ | Connection | Length (L) | Weight (approx.) |
04700.0-00 | 120-240V AC/DC² | 10W | 3 x 0.5mm² x 300mm cable (silicone) | 52mm | 0.1kg |
04701.0-00 | 120-240V AC/DC² | 20W | 3 x 0.5mm² x 300mm cable (silicone) | 60mm | 0.2kg |
04702.0-00 | 120-240V AC/DC² | 30W | 3 x 0.5mm² x 300mm cable (silicone) | 70mm | 0.2kg |
1、at +20°C (+68°F) ambient temperature,
2、(min. 110V, max 265V) Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
