Compact
Flat design
High air through-flow
Temperature safety cut-out
Clip fixing

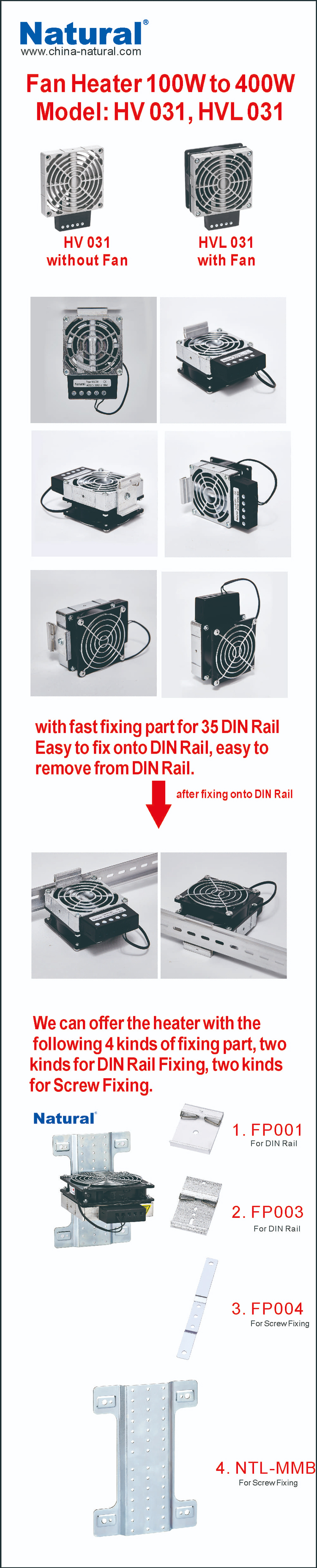

Compact high-performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. This fan heater may only be operated together with a fan but is also available without fan for self-assembly (HV 031) and with pre-configured fan (HVL 031).
HV 031/HVL 031 | |
Heating element | high performance cartridge |
Temperature safety cut-out | to protect against overheating in case of fan failure, automatic reset |
Heater body | die-cast aluminium (glass bead blasted) |
Connection | 3-pole screw connector 2.5mm², clamping torque 0.8Nm max. |
Connection casing | plastic according to UL94 V-0, black |
Mounting | clip for 35mm DIN rail, EN 60715 |
Fitting position | vertical airflow (air outlet up) |
Operating/Storage temperature | -45 to +70℃ (-49 to +158℉) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / I (earthed) |
HVL 031 only: | |
Axial fan, ball bearing | airflow see table, service life 50,000h at +25℃ (+77℉) |
Connection (axial fan) | 2-pole screw connector 2.5mm² (L2/N2) |
Note | HV 031: Heater without fan (fan mounting kit included) |

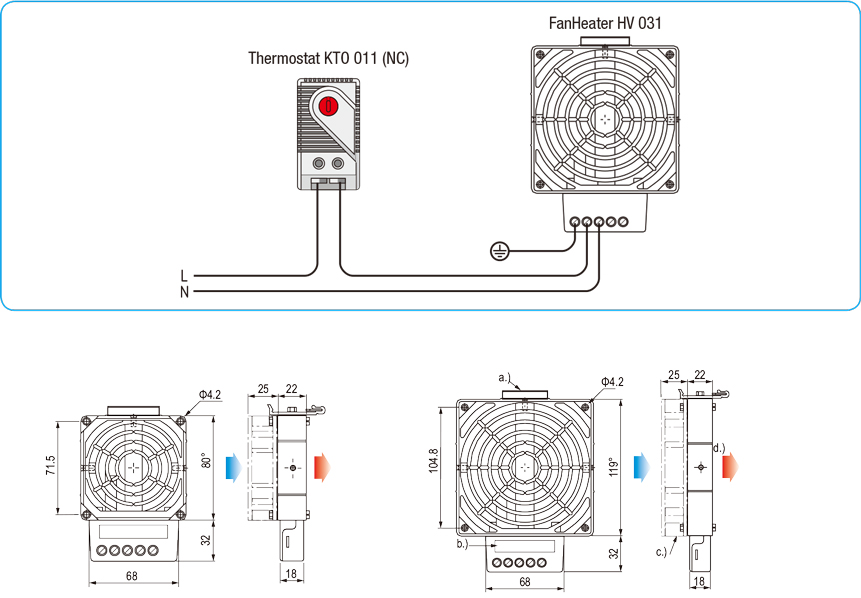

Art. No. HV 031 (230VAC) | Art. No. HV 031 (120VAC) | Heating capacity | Dimensions | Weight (approx.) |
03100.0-00 | 03100.9-00 | 100W | 80 x 112 x 22mm | 0.4kg |
03101.0-00 | 03101.9-00 | 150W | 80 x 112 x 22mm | 0.4kg |
03110.0-00 | 03110.9-00 | 200W | 119 x 151 x 22mm | 0.5kg |
03111.0-00 | 03111.9-00 | 300W | 119 x 151 x 22mm | 0.5kg |
03112.0-00 | 03112.9-00 | 400W | 119 x 151 x 22mm | 0.5kg |
Art. No. HVL 031 (230VAC) | Art. No. HV 031 (120VAC) | Heating capacity | Dimensions | Weight (approx.) |
03102.0-00 | 03102.9-00 | 100W | 80 x 112 x 22mm | 0.6kg |
03103.0-00 | 03103.9-00 | 150W | 80 x 112 x 22mm | 0.6kg |
03113.0-00 | 03113.9-00 | 200W | 119 x 151 x 22mm | 0.9kg |
03114.0-00 | 03114.9-00 | 300W | 119 x 151 x 22mm | 0.9kg |
03115.0-00 | 03115.9-00 | 400W | 119 x 151 x 22mm | 0.9kg |
