Compact
Flat design
High air through-flow
Temperature safety cut-out
Clip fixing

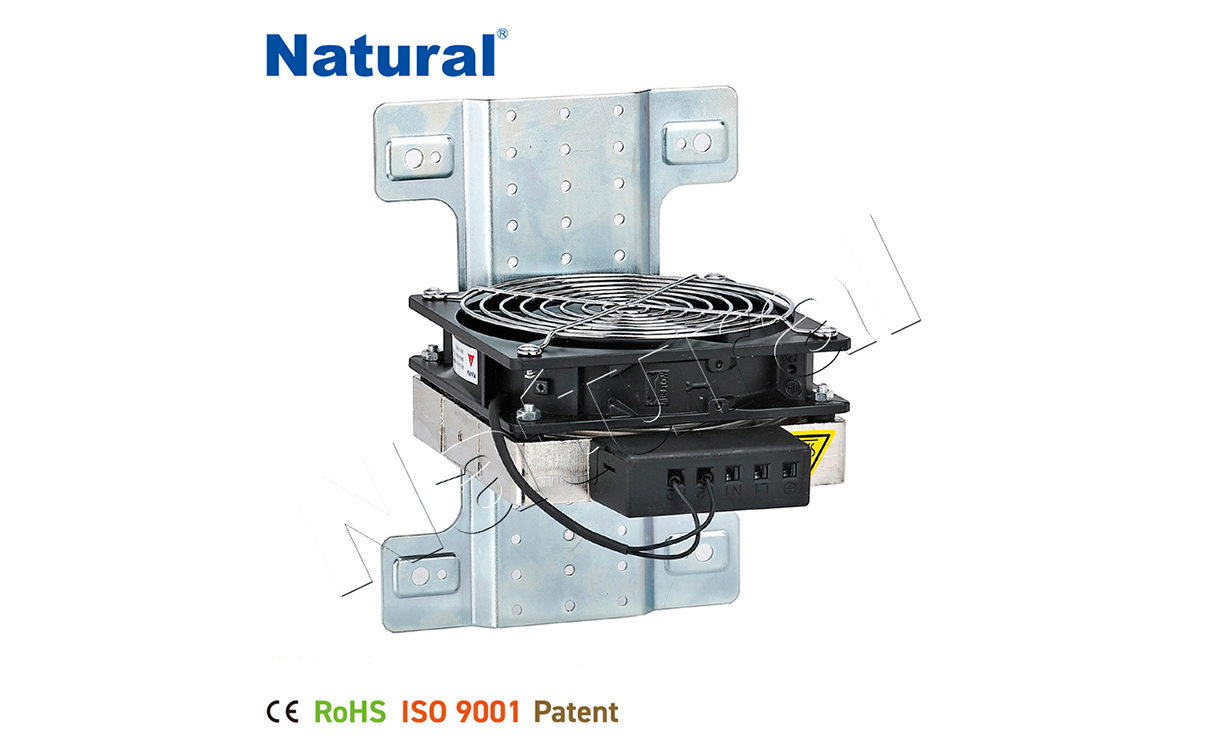

Compact high-performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. This fan heater may only be operated together with a fan but is also available without fan for self-assembly (NTL 405) and with pre-configured fan (NTL 406).
NTL 406-M Fan Heater | |
Operating voltage | 230VAC or 120VAC |
Heating element | high performance cartridge |
Temperature safety cut-out | to protect against overheating in case of fan failure, automatic reset |
Heater body | die-cast aluminium (glass bead blasted) |
Connection | 3-pole screw connector 2.5mm², clamping torque 0.8Nm max. |
Connection casing | plastic according to UL94 V-0, black |
Mounting | screw fixing |
Fitting position | vertical airflow (air outlet up) |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Axial fan, ball bearing | airflow see table, service life 50,000h at +25°C (+77°F) |
Connection (axial fan) | 2-pole screw connector 2.5mm² (L2/N2) |
Protection type/Protection class | IP20 / I (earthed) |
Art. No. (230VAC) | Art. No. (120VAC) | Heating capacity | Dimensions | Weight (approx.) |
406M01 | 406M06 | 100W | 80 x 112 x 22mm | 0.6kg |
406M02 | 406M07 | 150W | 80 x 112 x 22mm | 0.6kg |
406M03 | 406M08 | 200W | 119 x 151 x 22mm | 0.9kg |
406M04 | 406M09 | 300W | 119 x 151 x 22mm | 0.9kg |
406M05 | 406M10 | 400W | 119 x 151 x 22mm | 0.9kg |
