Wide voltage range
Dynamic heating up
Energy saving
Compact
Small heaters designed to prevent condensation and to ensure a minimum operating temperature in small enclosures.The heaters are designed for permanent operation.
RCE 016 | |
Operating voltage | 120-240V AC/DC¹ (min. 110V, max. 265V) |
Heating element | PTC resistor - temperature limiting |
Heater body | Aluminium |
Mounting | See Accessories |
Fitting position | Variable |
Dimensions | Length 45mm, Ø 10mm |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | Max. 90% RH (non-condensing) |
Protection type/Protection class | IP54 / II (double insulated) |

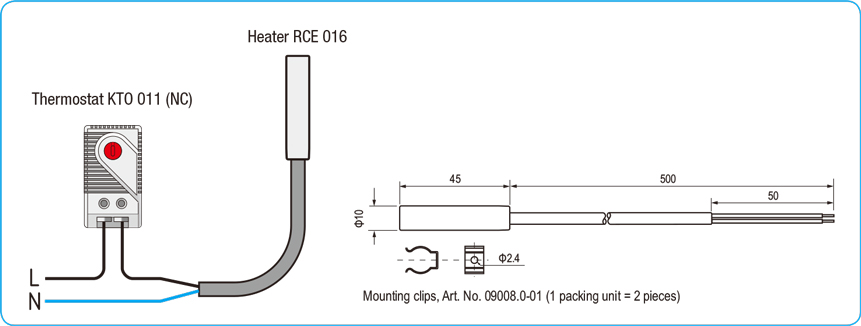

Accessories | Mounting clips (see illustration), Art. No. 09008.0-01 |
Note | Other voltages on request |
¹ Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
Art. No | Heating capacity² | Connection | Weight (approx.) |
01622.0-00 | 5W | 2 x AWG 24 cable (silicone) | 20g |
01623.0-00 | 9W | 2 x AWG 24 cable (silicone) | 20g |
² at +20°C (+68°F) ambient temperature
