28 items Patent
Small hysteresis
Status indicator (LED)
Change-over contact
Clip fxing

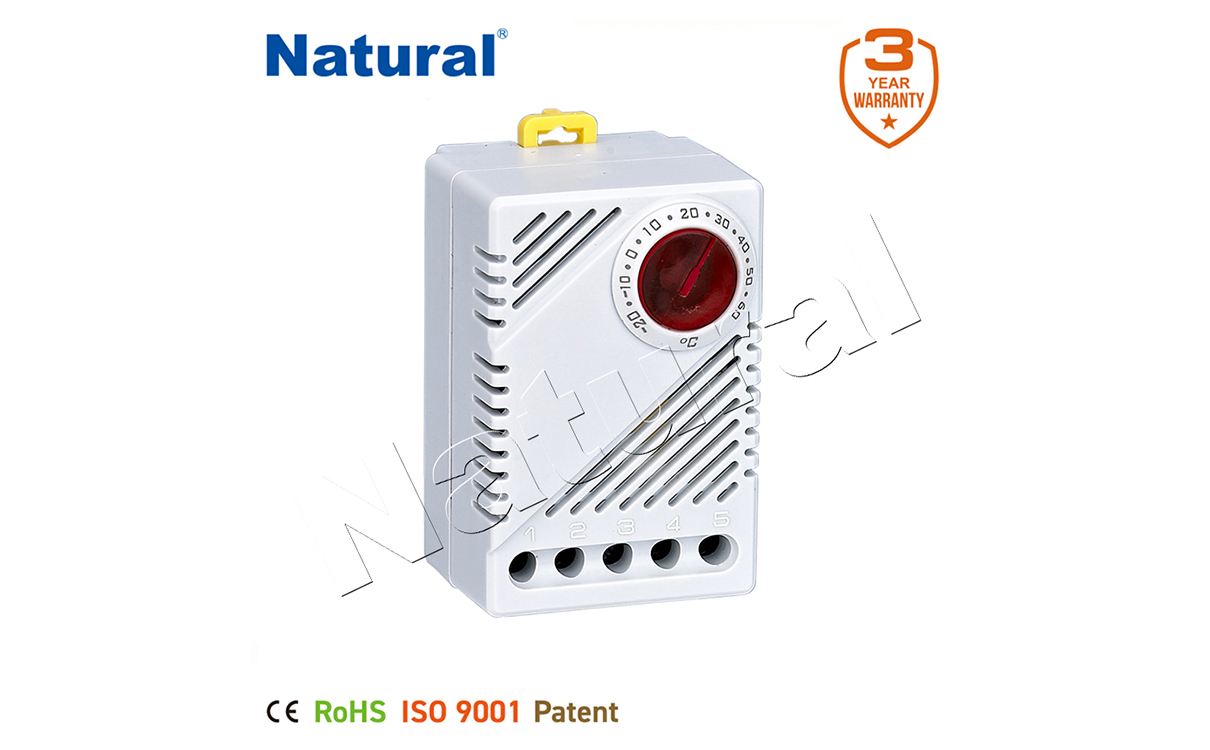

The electronic thermostat is used for controlling heating and cooling equipment, filter fans or signal devices. The thermostat registers the surrounding air and can switch both and inductive and resistive loads via relay with changeover contact. The LED integrated in the adjustment knob is lit when the NC is closed. (e.g. when a connected heater is operating).
Technical Data
NT 76-M | |
Switch temperature difference | 4K (± 1K tolerance) at +20℃ (+68℉)¹ |
Sensor element | NTC |
Reaction time | approx. 5 sec. |
Contact type | change-over contact (relay) |
Service life | > 50,000 cycles |
Max. switching capacity (relay output) | 240VAC / 120VAC, 8 (1.6) A |
Max. inrush current | AC 16A for 10 sec. |
Optical indicator | LED |
Connection | 5-pole terminal, clamping torque 0.5Nm max.: rigid/stranded wire 2.5mm²(AWG 14) |
Mounting | clip for 35mm DIN rail, EN 60715 |
Casing | plastic according to UL 94V-0, light grey |

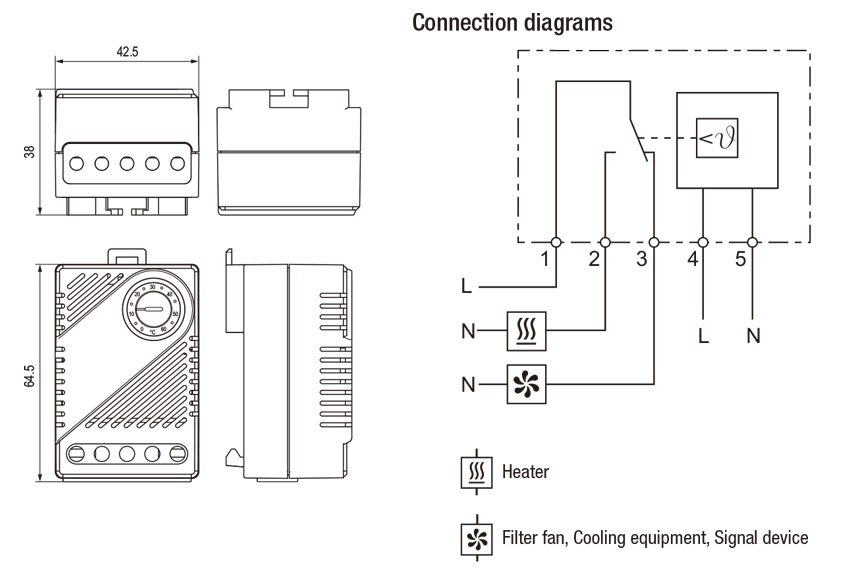

Dimensions | 64.5 x 42.5 x 38mm |
Weight | approx. 70g |
Fitting position | vertical |
Operating/Storage temperature | -40 to +85℃ (-40 to +185℉) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type | IP20 |
¹ When connecting with stranded wires, wire end ferrules must be used.
Art. No. | Setting Range | Operating Voltage |
860662 | -20 to +60℃ | 230VAC, 50/60Hz |
860663 | -4 to +140℉ | 120VAC, 50/60Hz |
