Large setting range
Small size
Simple to mount
High switching performance

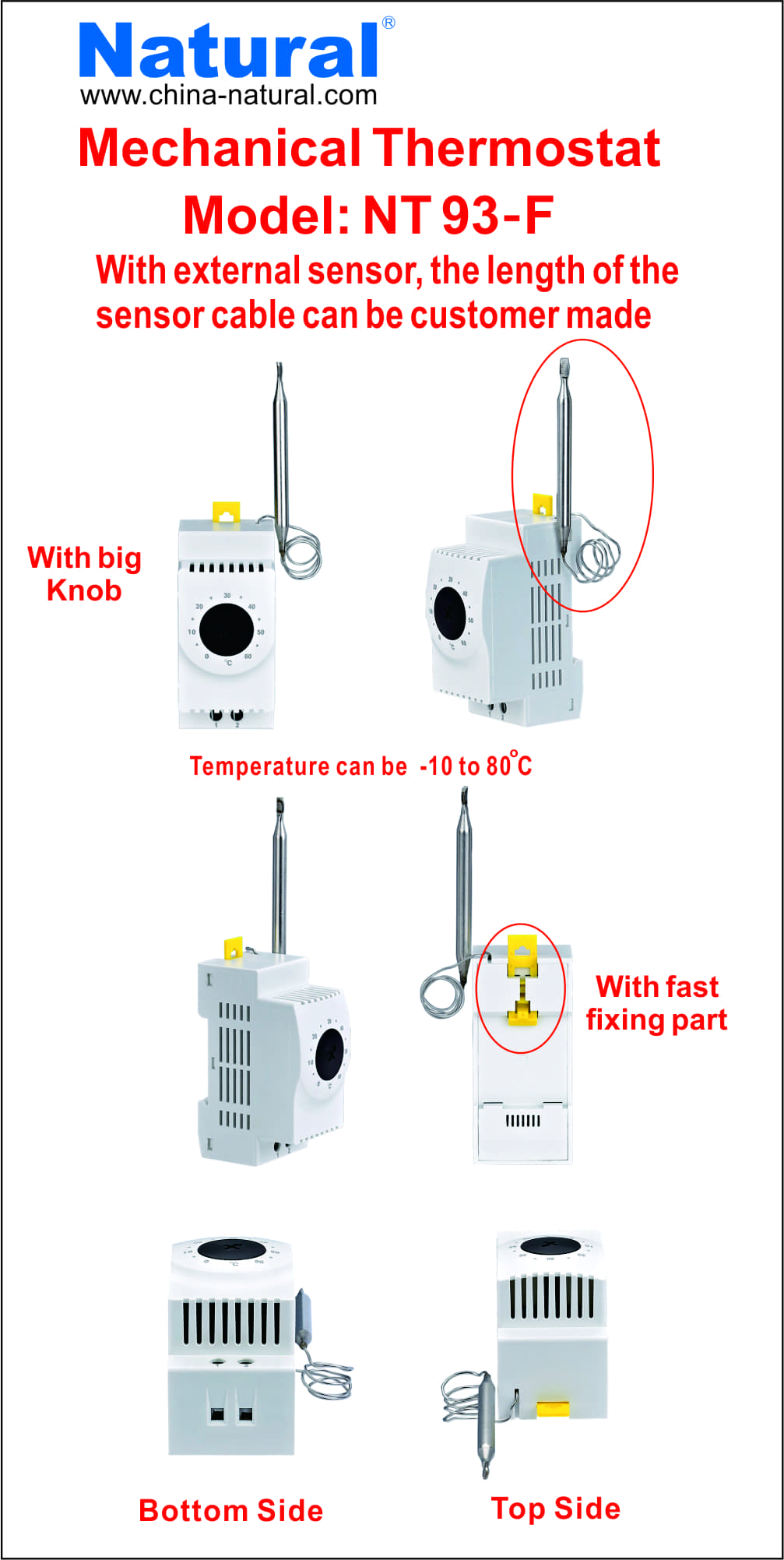

With external sensor

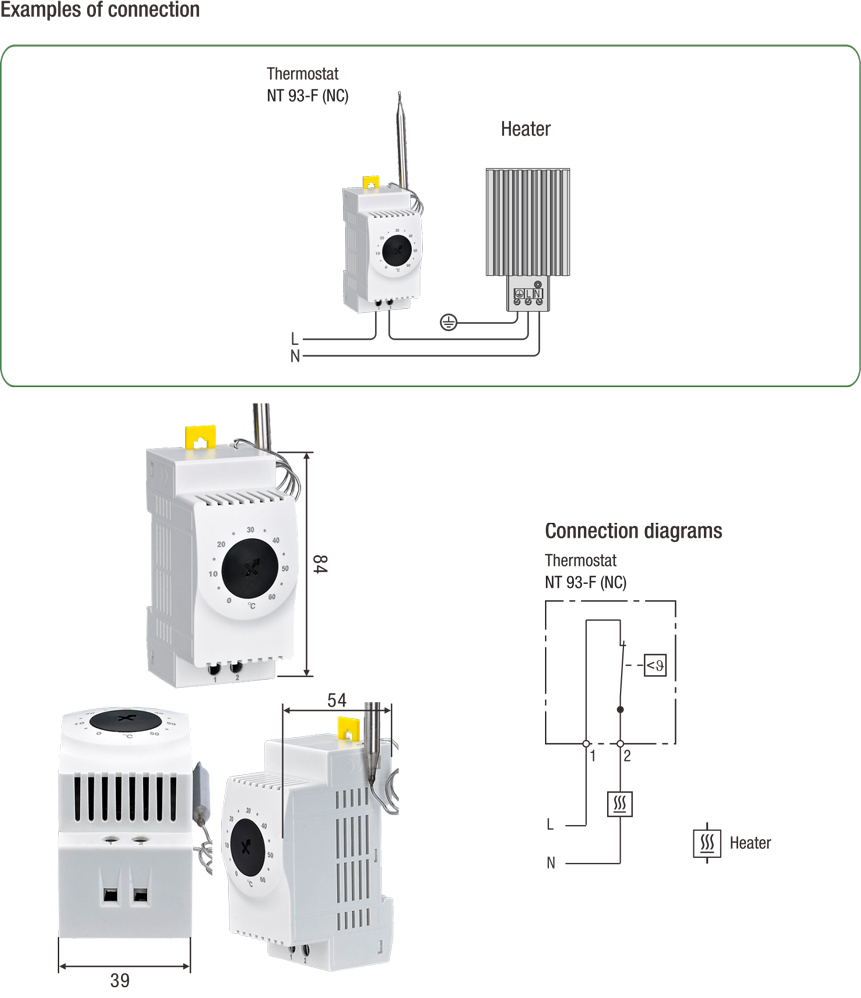

NT 93-F: Thermostat(normally closed); contact breaker for regulating heaters. The contact opens when temperature is rising.
Technical Data
NT 93-F | |
Switch temperature difference | +/-5℃ |
Sensor element | thermostatic bimetal |
Contact type | snap-action contact |
Service life | >100,000 cycles |
Max.switching capacity | 250VAC,10(2)A/120VAC,15(2)A DC 30W at 24VDC to 72VDC |
Max.inrush current | AC 16A for 10 sec |
Connection | 2-pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² （AWG 14） Stranded wire1 1.5mm²（AWG 16） |
Mounting | clip for 35mm DIN rail,EN 60715 |
Casing | plastic according to UL94 V-0, light grey |
Dimensions | 84×39×54mm |
Weight | approx. 40g |
Fitting position | varable |
Operating/Storage temperature | -45 to +80℃（-49 to +176℉） |
Operating/Storage humidity | max. 90% RH(non-condensing) |
Protection type | IP20 |
When connecting with wires, wire end ferrules must be used.
Important note: The contact system of the regulator is subjected to environmental influences, thus the contact resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.
Fast Fixing Type (F Type) | Setting range |
NT 93-F (NC Type) | |
93NC01 | 0 to +60℃ |
93NC02 | -10 to +50℃ |
93NC03 | +20 to +80℃ |
93NC04 | +32 to +140℉ |
93NC05 | +14 to +122℉ |
