Axial fan,ball bearing

service life L10 at +40℃ (+104℉): min. 50,000h fan body aluminium, rotor metal

Connection

2 stranded wires, 300mm

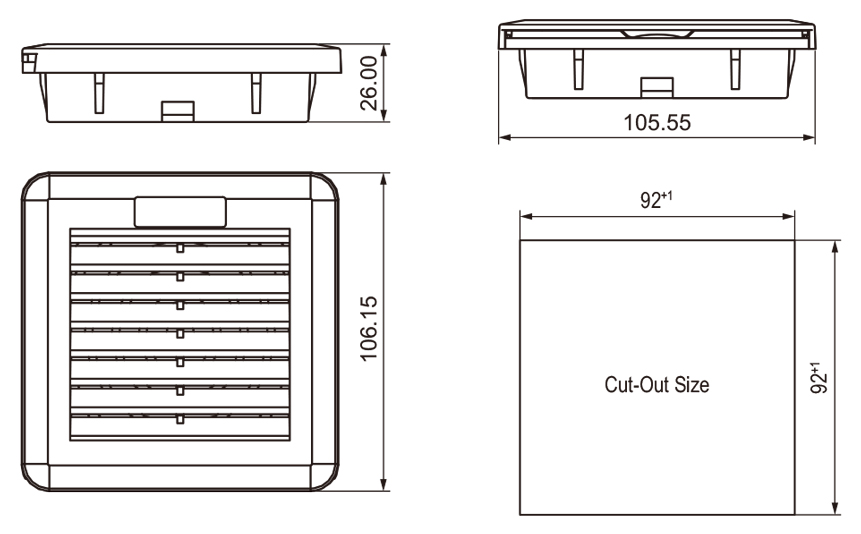

Enclosure cut-out

92×92⁺¹ mm

Mounting frame

fast fixing with clips for different size thickness of cabinet and enclosure, no need screw

fixing

Filter mat

F5

Filter material

new ABS material confirm to RoHS, fireproof or not fireproof can be choose

Operating/Storage temperature

-25 to +65℃ (-13 to +149℉) / -40 to +70℃ (-40 to +158℉)

Operating/Storage humidity

max. 90% RH (non-condensing)

Protection type/Protection class

IP55 / I (earthed)

SF106-F5

-

without fan

-

-

-

-

-

SFF106-F5-230A-C

230VAC

80×80×25

30/41

24

14/12

0.07

27/30

SFF106-F5-230B-C

230VAC

80×80×38

39/48

24

13/10

0.078/0.062

27130

SFF106-F5-115A-C

115VAC

80×80×25

30/41

24

14/12

0.07

27/30

SFF106-F5-115B-C

115VAC

80×80×38

39/48

24

13/10

0.078/0.062

27/30

SFF106-F5-D-C

120&230VAC

80×80×38

39/48

26

13/10

0.078/0.062

27/30

SFF106-F5-12-C

12VDC

80×80×38

84

30

4.8

0.4

30

SFF106-F5-24-C

24VDC

80×80×38

84

30

4.8

0.2

30

SFF106-F5-48-C

48VDC

80×80×38

84

30

4.8

0.1

30

SF322-EMC

-

without fan

-

-

-

-

-

SFF322-EMC-230A-C

230VAC

200×200×60

800/1000

400

48/63

0.23/0.28

63/66

SFF322A-EMC-230B-C

230VAC

200×200×60

800/1000

480

48/63

0.23/0.28

63/66

SFF322A-EMC-230C-C

230VAC

Ø220×60

800/1000

550

48/63

0.23/0.28

63/66

SFF322A-EMC-230D-C

230VAC

225×225×80

1000/1150

700

72/80

0.33/0.35

63/66

SFF322-EMC-230E-C

230VAC

280×280×80

1200/1400

850

120/160

0.5/0.7

65/70

SFF322-EMC-115A-C

115VAC

200×200×60

800/1000

480

48/63

0.42

63/66

SFF322A-EMC-115B-C

115VAC

200×200×60

800/1000

480

48/63

0.42

63/66

SFF322A-EMC-115C-C

115VAC

Ø220×60

800/1000

480

48/63

0.42

63/66

SFF322A-EMC-115D-C

115VAC

225×225×80

1000/1150

700

70/80

0.65/0.7

63/66

SFF322-EMC-115E-C

115VAC

280×280×80

1200/1400

850

120/160

1/1/1.4

65/70

SFF322-EMC-400A-C

400VAC

200×200×60

800/1000

400

60

0.2

63/66

SFF322A-EMC-400B-C

400VAC

200×200×60

800/1000

480

60

0.2

63/66

SFF322A-EMC-400C-C

400VAC

Ø220×60

800/1000

480

60

0.2

63/66

SFF322A-EMC-400D-C

400VAC

225×225×80

1000/1150

700

72/80

0.2

63/66

SFF322-EMC-400E-C

400VAC

280×280×80

1200/1400

850

120

0.36

65/70

SFF322A-EMC-12-C

12VDC

200×200×60

1008

700

24

2

68

SFF322A-EMC-24-C

24VDC

200×200×60

1008

700

24

1

68

SFF322A-EMC-48-C

48VDC

200×200×60

1008

700

24

0.5

68
