Axial fan,ball bearing

service life L10 at +40℃ (+104℉):  min. 56,000h rotor metal

Connection

2 stranded wires, 300mm or 3-pole clamp for 2.5mm², clamping torque 0.8Nm max.

can be customer made according to customer’s requirement.

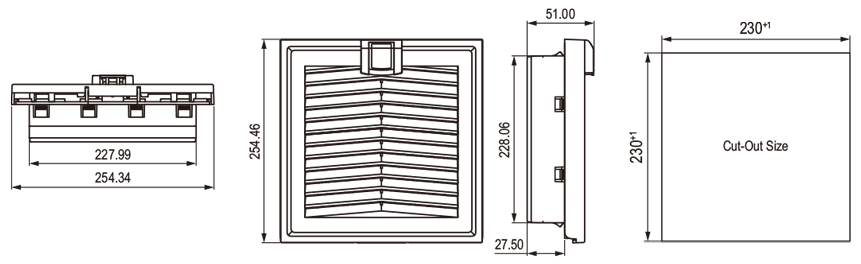

Enclosure cut-out

230×230⁺¹ mm

Mounting frame

can fix by fast fixing clip or fix by screws

Filter mat

F5

Filter material

new ABS material confirm to RoHS, fireproof or not fireproof can be choose

Operating/Storage temperature

-25 to +65℃ (-13 to +149℉) / -40 to +70℃ (-40 to +158℉)

Operating/Storage humidity

max. 75% RH (non-condensing)

Protection type/Protection class

IP55 / I (earthed)

FL255-F5

-

without fan

-

-

-

-

-

FFL255-F5-230A-C

230VAC

Ø172×51

272/316

200

26/28

0.43/0.4

52/62

FFL255-F5-230B-C

230VAC

172×150×51

272/316

200

26/28

0.43/0.4

52/62

FFL255-F5-230C-C

230VAC

Ø220×60

800/1000

500

48/63

0.23/0.28

63/66

FFL255-F5-230D-C

230VAC

200×200×60

800/1000

400

48/63

0.23/0.28

63/66

FFL255A-F5-230E-C

230VAC

Ø172×51

272/316

200

26/28

0.43/0.4

52/62

FFL255A-F5-230F-C

230VAC

172×150×51

272/316

200

26/28

0.43/0.4

52/62

FFL255A-F5-230G-C

230VAC

180×180×65

586/671

380

42/50

0.2/0.24

63/68

FFL255-F5-115A-C

115VAC

Ø220×60

800/1000

500

48/63

0.42

63/66

FFL255-F5-115B-C

115VAC

200×200×60

800/1000

480

48/63

0.42

63/66

FFL255A-F5-115C-C

115VAC

Ø172×51

272/316

200

26/28

0.43/0.4

52/62

FFL255A-F5-115D-C

115VAC

172×150×51

272/316

200

26/28

0.43/0.4

52/62

FFL255A-F5-115E-C

115VAC

180×180×65

586/671

380

42/50

0.42

63/68

FFL255A-F5-D-C

120&230VAC

172×150×51

272/316

200

26/28

0.43/0.4

52/62

FFL255-F5-400A-C

400VAC

Ø220×60

800/1000

550

48/63

0.25

63/66

FFL255-F5-400B-C

400VAC

200×200×60

800/1000

480

60

0.2

63/66

FFL255A-F5-400C-C

400VAC

0172×51

272/316

200

26/28

0.13/0.11

52/62

FFL255A-F5-400D-C

400VAC

172×150×51

272/316

200

26/28

0.13/0.11

52/62

FFL255A-F5-400E-C

400VAC

180×180×65

586/671

380

42/50

0.15

63/68

FFL255A-F5-12A-C

12VDC

172×150×51

374

260

12

1

62

FFL255-F5-12B-C

12VDC

200×200×60

1008

480

24

2

68

FFL255A-F5-24A-C

24VDC

172×150×51

374

260

12

0.5

62

FFL255-F5-24B-C

24VDC

200×200×60

1008

480

24

1

68

FFL255A-F5-48A-C

48VDC

172×150×51

374

260

12

0.25

62

FFL255-F5-48B-C

48VDC

200×200×60

1008

480

24

0.5

68
