Axial fan, ball bearing

service life L10 at +40℃ (+104℉): min. 50,000h fan body aluminium, rotor metal

Connection

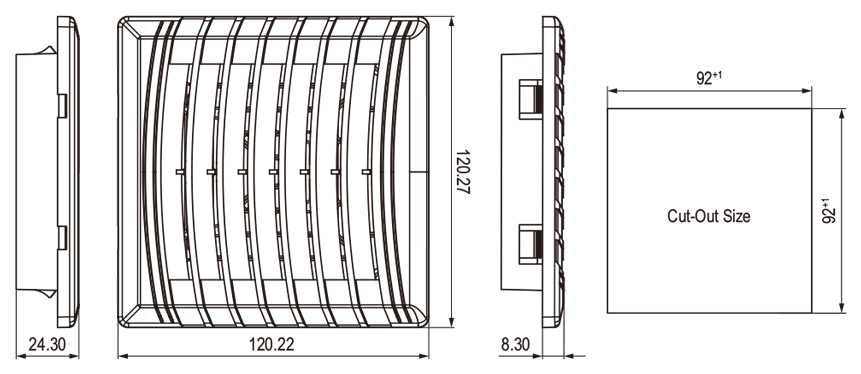

Enclosure cut-out

92×92+1 mm

Mounting frame

screw fixing type, easy to open the cover

Filter mat

G4 acc. to DIN EN 779, filtering degree 94%

Filter material

new ABS material confirm to RoHS, fireproof or not fireproof can be choose

Operating/Storage temperature

-25to+65℃(-13to+149℉)/-40to+70℃(-40to+158℉)

Operating/Storage humidity

max.90% RH(non-condensing)

Protection type/Protection class

IP54/I(earthed)

Function

with EMC function

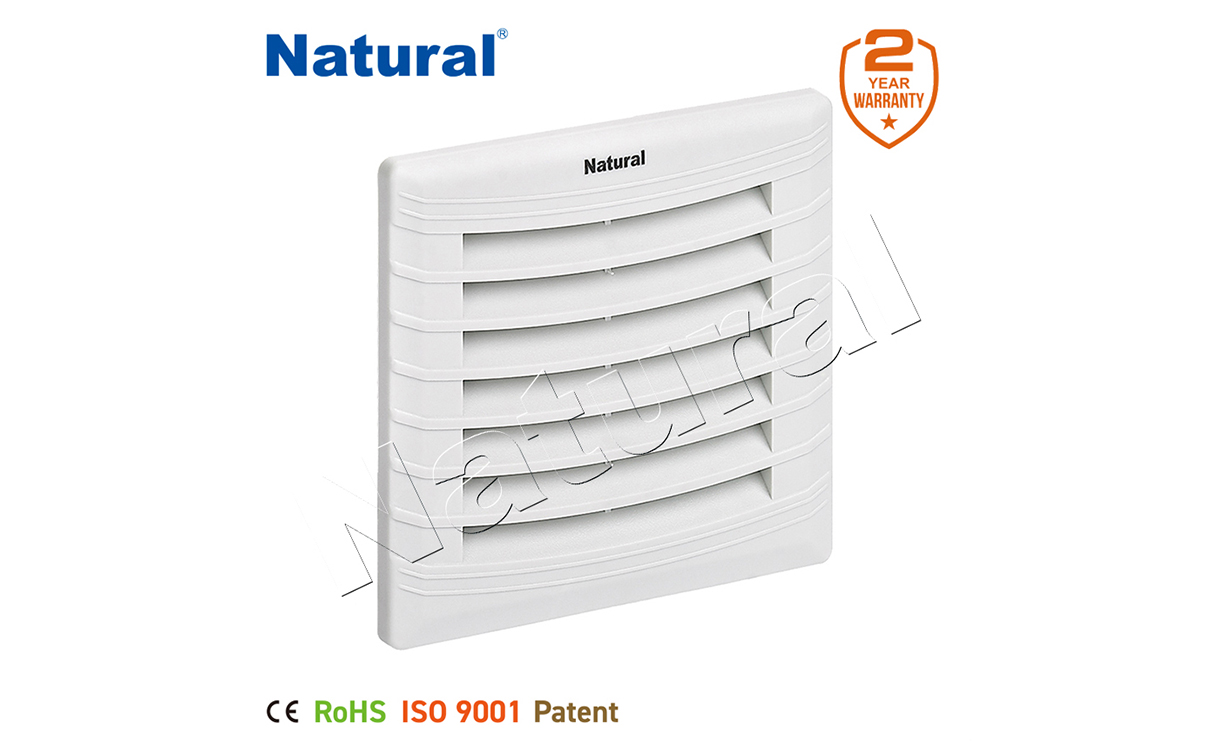

FN120-EMC

-

without fan

-

-

-

-

-

FNF120-EMC-230A-C

230VAC

80×80×25

30/41

24

14/12

0.07

27/30

FNF120-EMC-230B-C

230VAC

80×80×38

39/48

24

13/10

0.078/0.062

27/30

FNF120-EMC-230C-C

230VAC

92×92×38

66/78

26

14/11

0.09/0.07

27/30

FNF120-EMC-115A-C

115VAC

80×80×25

30/41

24

14/12

0.07

27/30

FNF120-EMC-115B-C

115VAC

80×80×38

39/48

24

13/10

0.078/0.062

27/30

FNF120-EMC-115C-C

115VAC

92×92×38

66/78

26

14/11

0.09/0.07

27/30

FNF120-EMC-D-C

120&230VAC

80×80×38

39/48

26

13/10

0.078/0.062

27/30

FNF120-EMC-12-C

12VDC

80×80×38

84

30

4.8

0.4

30

FNF120-EMC-24-C

24VDC

80×80×38

84

30

4.8

0.2

30

FNF120-EMC-48-C

48VDC

80×80×38

84

30

4.8

0.1

30
