Axial fan,ball bearing

service life L10 at +40℃ (+104℉):  min. 56,000h rotor metal

Connection

3-pole clamp for 2.5mm², clamping torque 0.8Nm max.

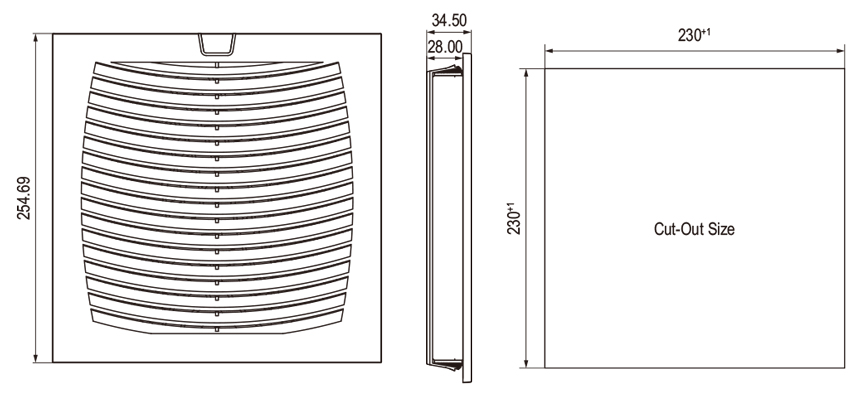

Enclosure cut-out

230×230+1 mm

Mounting frame

4 built-in ratchet braces for mounting (6 notches for wall thickness 1-4mm).

additional use of screws possible if needed.

Filter mat

F5

Filter material

new ABS material confirm to RoHS, fireproof or not fireproof can be choose

Operating/Storage temperature

-25 to +65℃ (-13 to +149℉) / -40 to +70℃ (-40 to +158℉)

Operating/Storage humidity

max. 75% RH (non-condensing)

Protection type/Protection class

IP55 / I (earthed)

Function

with F5 function

FC255-F5

-

without fan

-

-

-

-

-

FCF255-F5-230A-C

230VAC

Ø172×51

272/316

200

26/28

0.43/0.4

52/62

FCF255-F5-230B-C

230VAC

172×150×51

272/316

200

26/28

0.43/0.4

52/62

FCF255-F5-230C-C

230VAC

Ø220×60

800/1000

500

48/63

0.23/0.28

63/66

FCF255-F5-230D-C

230VAC

200×200×60

800/1000

400

48/63

0.23/0.28

63/66

FCF255A-F5-230E-C

230VAC

Ø172×51

272/316

200

26/28

0.43/0.4

52/62

FCF255A-F5-230F-C

230VAC

172×150×51

272/316

200

26/28

0.43/0.4

52/62

FCF255A-F5-230G-C

230VAC

180×180××65

586/671

380

42/50

0.2/0.24

63/68

FCF255-F5-115A-C

115VAC

Ø220×60

800/1000

500

48/63

0.42

63/66

FCF255-F5-115B-C

115VAC

200×200×60

800/1000

480

48/63

0.42

63/66

FCF255A-F5-115C-C

115VAC

Ø172×51

272/316

200

26/28

0.43/0.4

52/62

FCF255A-F5-115D-C

115VAC

172×150×51

272/316

200

26/28

0.43/0.4

52/62

FCF255A-F5-115E-C

115VAC

180×180×65

586/671

380

42/50

0.42

63/68

FCF255A-F5-D-C

120&230VAC

172×150×51

272/316

200

26/28

0.43/0.4

52/62

FCF255-F5-400A-C

400VAC

Ø220×60

800/1000

550

48/63

0.25

63/66

FCF255-F5-400B-C

400VAC

200×200×60

800/1000

480

60

0.2

63/66

FCF255A-F5-400C-C

400VAC

Ø172×51

272/316

200

26/28

0.13/0.11

52/62

FCF255A-F5-400D-C

400VAC

172×150×51

272/316

200

26/28

0.13/0.11

52/62

FCF255A-F5-400E-C

400VAC

180×180×65

586/671

380

42/50

0.15

63/68

FCF255A-F5-12A-C

12VDC

172×150×51

374

260

12

1

62

FCF255-F5-12B-C

12VD0

200×200×60

1008

480

24

2

68

FCF255A-F5-24A-C

24VDC

172×150×51

374

260

12

0.5

62

FCF255-F5-24B-C

24VDC

200×200×60

1008

480

24

1

68

FCF255A-F5-48A-C

48VDC

172×150×51

374

260

12

0.25

62

FCF255-F5-48B-C

48VDC

200×200×60

1008

480

24

0.5

68
