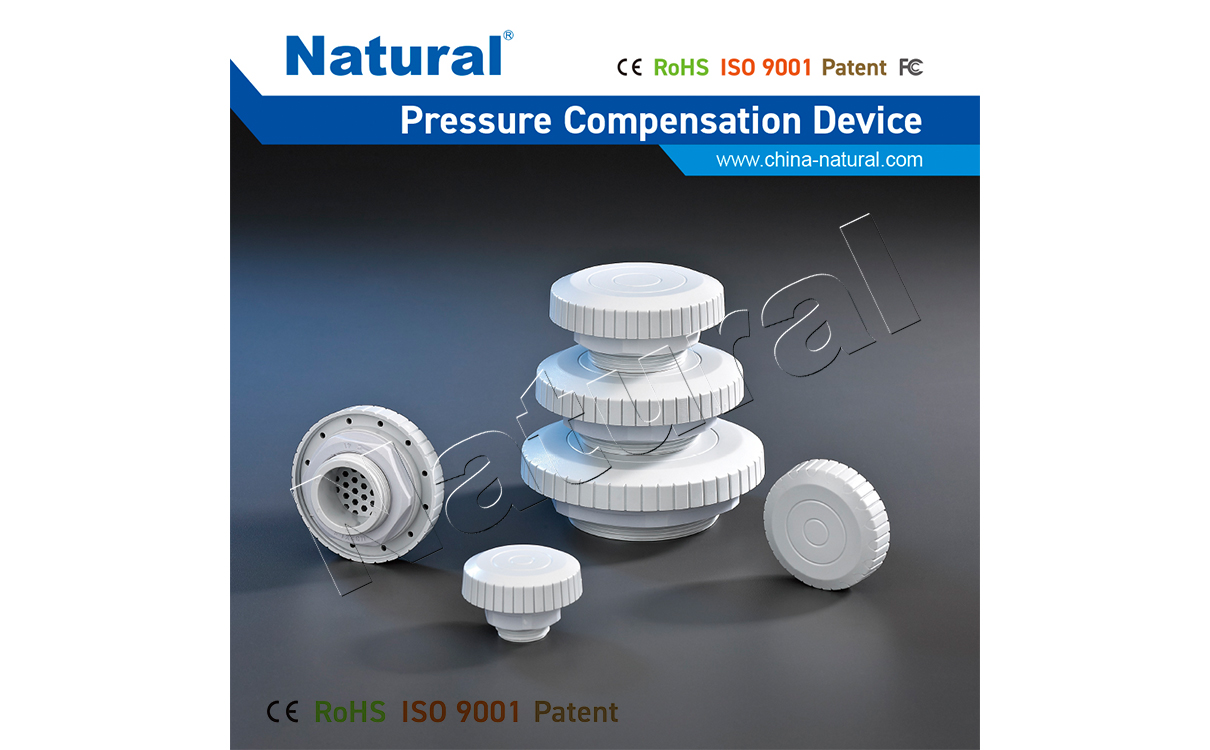

NTL-MXX Compensation Devices
Features

High degree of protection



Waterproof membrane



Easy to install


Product Description

Pressure differentials in enclosures with a high degree of protection are a result of internal and external temperature changes. In the case of negative pressure or partical vacuum, dust and humidity can enter the enclosure through the door seal. When the air inside the enclosure cools down, condensation may occur because the humidity cannot escape the enclosure. The easy-to-install pressure compensation device NTL-M provides compensation of pressure at a protection degree of IP66 (M12: IP67). Even with a slight overpressure, a waterproof membrane inside the plug allows the humidity to escape whilst blocking water and dirt from entering the enclosure.

Technical Data

NTL-M□□

Mounting

thread M40×1.5 or M12×1.5 with nut

Torque

M40: 5Nm (max. 10Nm), M12: 0.5Nm (max. 1Nm)

Depth in enclosure

M40: approx. 16mm, M12: approx. 8mm

Sealing

sealing gasket NBR

Material

plastic, light grey

Filter

waterproof membrane

Dimensions

M40: Ø69.90×33.6mm

Fitting position

variable


Mounting options

Model

Art. No.

Thread

Protection Type

Air Permeability

NTL-M12

M12

M12×1.5

IP66

120l/h

NTL-M16

M16

M16×1.5

IP66

160l/h

NTL-M20

M20

M20×1.5

IP66

600l/h

NTL-M25

M25

M25×1.5

IP66

700l/h

NTL-M32

M32

M32×1.5

IP66

800l/h

NTL-M40

M40

M40×1.5

IP66

1200l/h

NTL-M50

M50

M50×1.5

IP66

1400l/h

NTL-M63

M63

M63×1.5

IP66

1600l/h


Structure Chart
