28 items Patent
Increasing the protection type
Easy to clean
Filter mat change from outside
Impact-resistant, robust
Safe against unauthorized removal
Weatherproof
Versatile
Protective grid

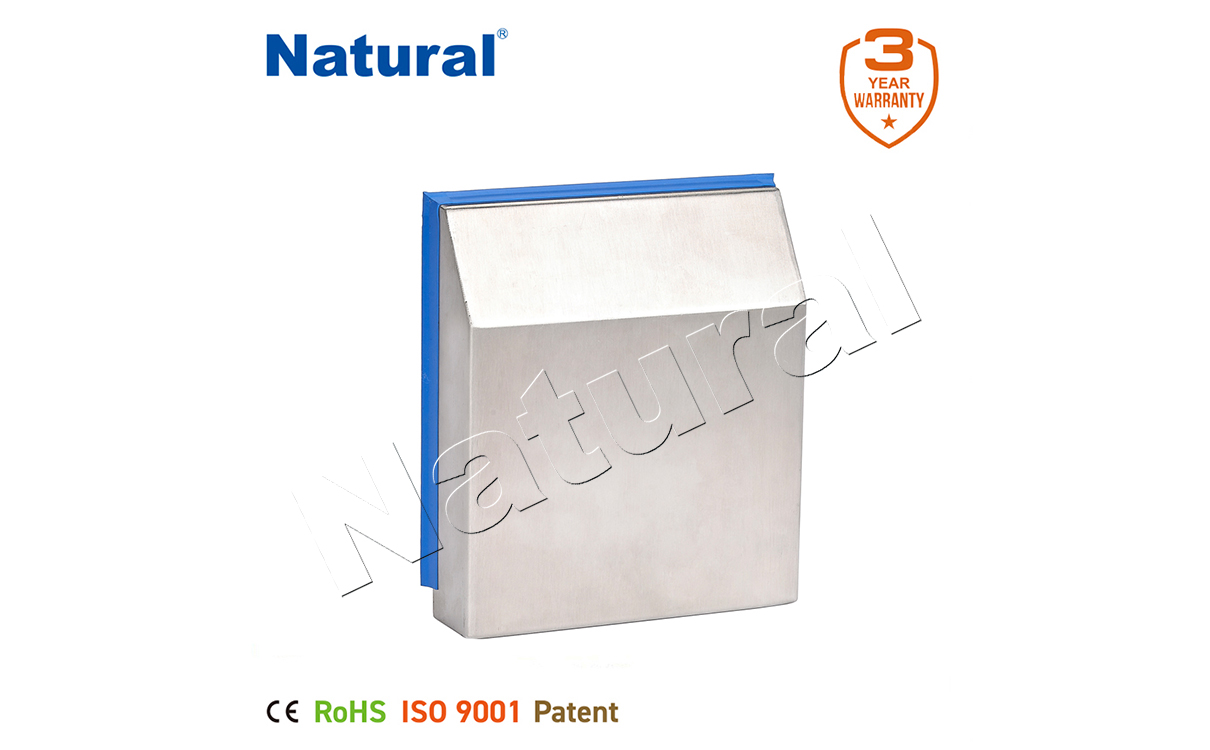

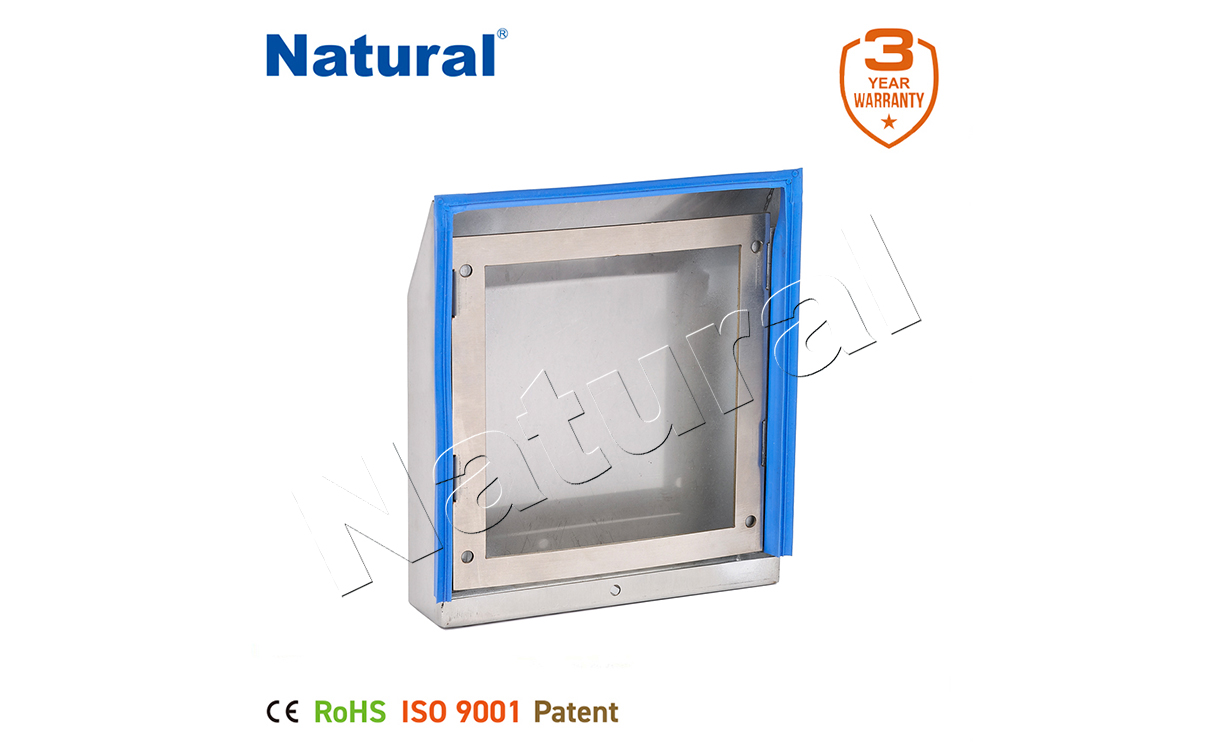

Hose-proof hood made of stainless steel VA increases the protection type of filterfans to IP56. Application: Outdoors and in industrialapplications with harsh environmental conditions.
| NTL-MCH-E | |
| Material sealing | Silicone, food safe |
| Material hood | Stainless steel |
| Protection type | IP56 |

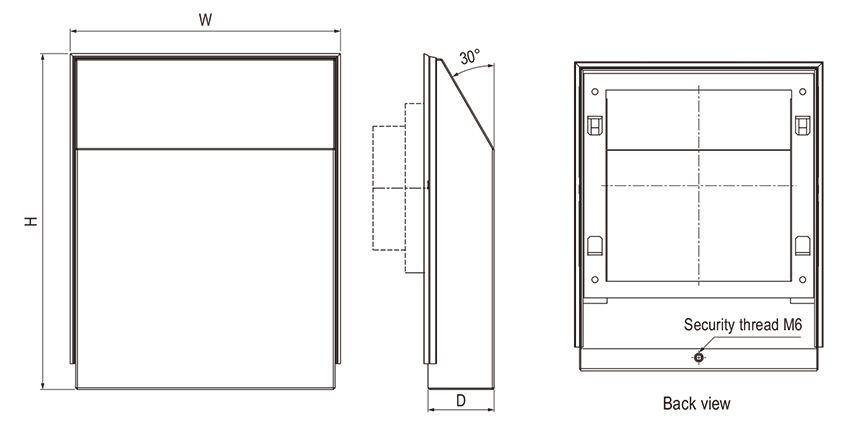

Art. No. | Size (Height×Width×Depth) | Cut-out dimension |
NTL-MCHE120 | 214×195×48mm | 92×92 mm |
NTL-MCHE152 | 279×225×58mm | 124×24 mm |
NTL-MCHE204 | 359×294×68mm | 176×176 mm |
NTL-MCHE255 | 415×369×78mm | 223×223 mm |
NTL-MCHE323 | 485×409×103mm | 291×291 mm |
