28 items Patent
Quickly connected
Available with or without fuse
Clip fixing

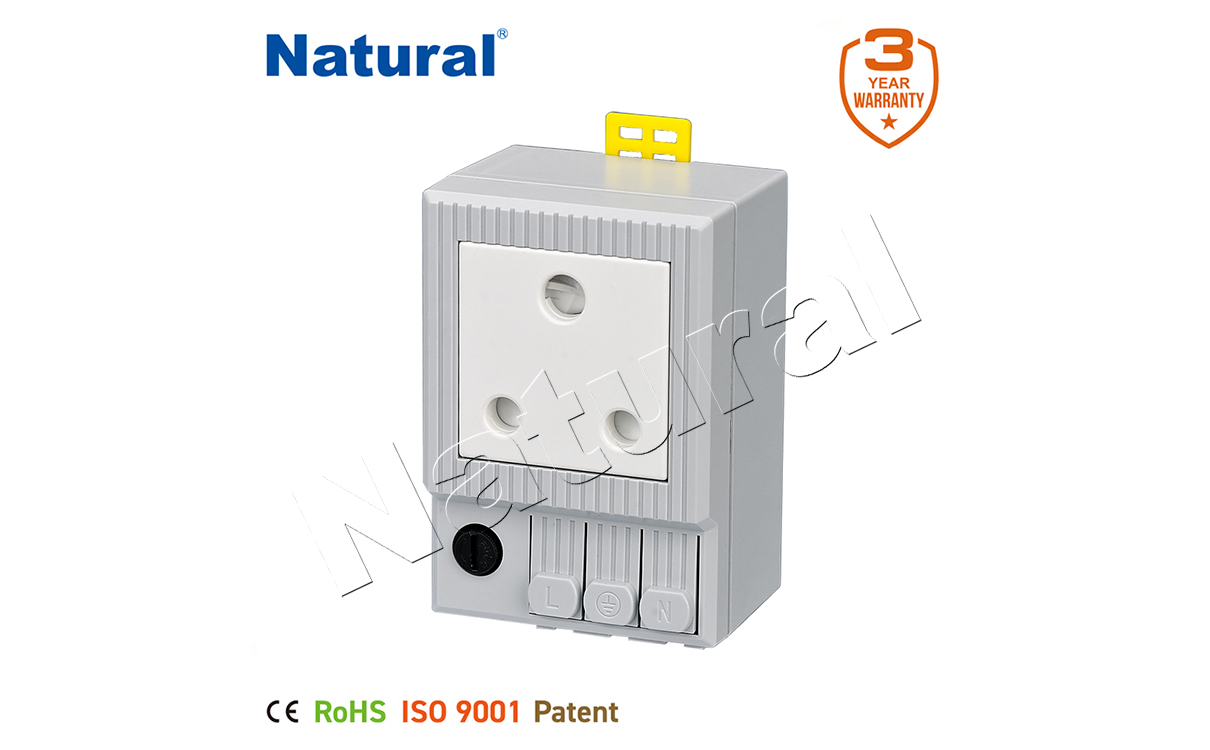

The DIN rail mounted electrical socket can be quickly fitted and connected in enclosures allowing the use of auxiliary products such as hand lamps, measuring devices, soldering irons etc. The unit is available with and without fuse and in many world socket standards.
NTL-S □□ | |
Connection | 3×pressure clamps for stranded and rigid wire 0.5-2.5mm² |
Mounting | clip for 35mm DIN rail, EN 60715 |
Casing | plastic according to UL94 V-0, light grey |
Dimensions | 92×62×48mm |
Weight | approx. 0.2kg |
Fitting position | variable |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP20 / I (earthed) |
Art.No. | Operating Voltage | Nominal current | Socket type |
NTL-SBR | AC 250V/125V | 10A | Brasil Type Cabinet Socket, 10A |
NTL-SCH | AC 250V/125V | 10A | Switzerland Type Cabinet Socket, 10A |
NTL-SCH2 | AC 250V/125V | 10A | |
NTL-SCN | AC 250V/125V | 10A | Australia, New Zealand, Papua New Guinea, Fiji, Kiribati, |
NTL-SCN2 | AC 250V/125V | 10A | |
NTL-SCN3 | AC 250V/125V | 10A | |
NTL-SDE | AC 250V/125V | 16A | Germany Type, 16A |
NTL-SDK | AC 250V/125V | 16A | Denmark Type Cabinet Socket, 16A |
NTL-SEU | AC 250V/125V | 16A | European Union Type Cabinet Socket, 16A |
NTL-SEU2 | AC 250V/125V | 16A | |
NTL-SFR | AC 250V/125V | 16A | FR/PL/CZ/SK Type Cabinet Socket, 16A |
NTL-SIL | AC 250V/125V | 16A | Israel Type Cabinet Socket, 16A |
NTL-SIT | AC 250V/125V | 16A | Italy Type Cabinet Socket, 16A |
NTL-SIT2 | AC 250V/125V | 16A | |
NTL-SMU | AC 250V/125V | 15A | Multiple Type, Southeast Asia Type, United States Type |
NTL-SMU2 | AC 250V/125V | 15A | |
NTL-SMU3 | AC 250V/125V | 15A | |
NTL-SMU4 | AC 250V/125V | 15A | |
NTL-SSA | AC 250V/125V | 16A | South Africa Type Cabinet Socket, 16A |
NTL-SUK | AC 250V/125V | 13A | UK/Irland Type Cabinet Socket, 13A |
NTL-SUS | AC 250V/125V | 15A | US/Canada Type Cabinet Socket, 15A |
NTL-SUSB | 5V | 3.1A | with 2 USB and 1 Type C |
NTL-SUSB+C | 5V | 3.1A | with 1 USB and 1 Type C |
