Out products are widely used in the control panels, junction boxes, power distribution box, automation equipment, electronic and power device, welding machine, packing etc.
Normal Color: RAL 7035, RAL 7032
NTL-TF-S | |
Using life | service life L10 at +40°C (+104°F): min. 50,000h rotor metal |
Connection | 3-pole clamp for 2.5mm², clamping torque 0.8Nm max. |

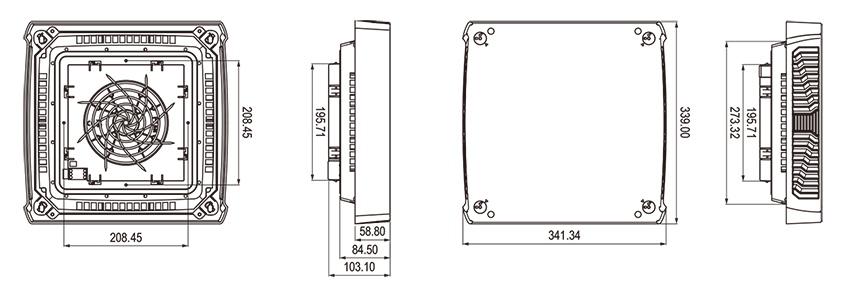

Dimensions | 341×339×103mm |
Enclosure cut-out | 199×199+1 mm |
Centrifugal Fan | capacitive motor |
Filter mat | G4 |
Filter materia | ABS |
Operating temperature | 50 Hz: -25 to +55°C (-13 to+ 131°F), 60 Hz: -25 to +35°C (-13 to +95°F) |
Storage temperature | -40 to +70°C (-40 to+ 158°F) |
Operating/Storage humidity | max. 75% RH (non-condensing) |
Protection type/Protection class | without filter mat: IP22, with filter mat: IP55 |
Art. No. | Voltage (V) | Air flow rate (free blow) no filter mat (m3/h) | Air flow rate (free blow) with filter mat (m3/h) | Power consumption (W) | Current consumption (A) | Noise level (dBA) |
NTL-TF-S | without fan | - | - | - | - | - |
NTL-TFS230A | 230VAC | 270 | 190 | 46/48 | 0.2/0.21 | 58 |
NTL-TFS230B | 230VAC | 336 | 240 | 59/66 | 0.277/0.29 | 56 |
NTL-TFS230C | 230VAC | 450 | 315 | 62/73 | 0.28/0.315 | 56 |
NTL-TFS115A | 115VAC | 270 | 190 | 46/48 | 0.3/0.315 | 58 |
NTL-TFS115B | 115VAC | 336 | 240 | 59/66 | 0.41/0.44 | 56 |
NTL-TFS115C | 115VAC | 450 | 315 | 62/73 | 0.42/0.47 | 56 |
NTL-TFS380A | 380VAC | 270 | 190 | 30 | 0.05 | 58 |
NTL-TFS380B | 380VAC | 336 | 240 | 60 | 0.2 | 56 |
NTL-TFS380C | 380VAC | 450 | 315 | 60 | 0.2 | 56 |
